Water bodies are still not being exploited to their full potential and assistance from science and technology is required to achieve explorations in greater depths and presently unexplored areas, which are beyond the direct human reach. The self-guided and battery operated intelligent robots, Autonomous Underwater Vehicles (AUVs), which can swim freely and are capable of carrying out predefined tasks autonomously under the water, are the ideal solution. AUVs are the alternatives to the remotely operated vehicles (ROVs), which are controlled and powered from the surface but often prove to be inefficient at the places where communication between the operator and robot is constrained.

The AUV technology is quite popular in some western countries and is also available commercially, with US being the leader in the AUV market. A team of undergraduate students from IIT Madras with the association of Centre for Innovation (CFI) have worked to come up with an all Indian version of autonomous underwater vehicle called AMOGH.

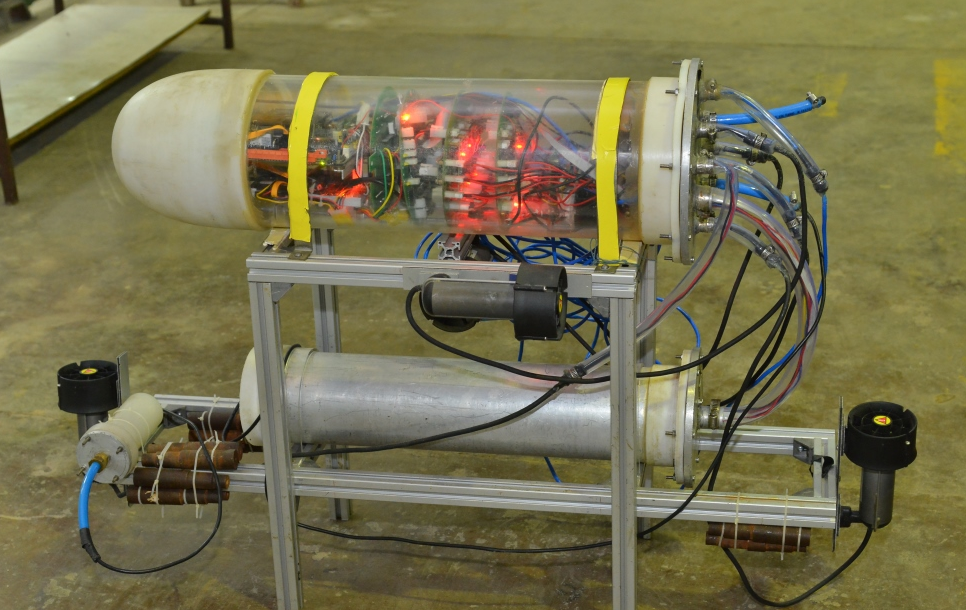

Amogh
What’s special about AMOGH?
AMOGH is built using a powerful dual core Intel atom processor and an Arduino Mega 2650 microcontroller which can be pre-programmed for underwater navigation and imaging. It possess intelligence for enhanced maneuverability, vertical and horizontal profiling, picking/placing objects underwater and audio signal processing.

Explore Circuits and Projects Explore Videos and Tutorials

F16_1

Inspiration
The team started constructing AMOGH with an initial aim to accomplish the problem statements of different national and international miniature AUV design competitions but the industrial applications of the technology were realized later and the need of India’s coastal surveillance and protection prompted them to upgrade the innovation to its industrial version.

“The main inspiration of the team behind this project is to bring AUVs in India to make it self-sufficient in underwater technology and capable of developing robust indigenous architecture for underwater vehicles,” said Sanchit Gupta, member of the team.
“The initiative of the Navy in 2008 to construct 10 AUVs for the purpose of coastal surveillance boosted the team’s confidence to achieve its endeavour. This was the main motive of the team behind the design of AMOGH,” he added.

READ
"We are currently working on a processor-based IoT gateway that would be at the heart of IoT applications"

The Research and the Challenges
Initially, the team started working on the ROV concept and after its successful testing, the design evolved to that of an AUV. The team struggled through the various challenges, and it took approximately a year for them to realise their vision.

The team did an extensive research on gathering the required set of resources and the important electronic components essential for underwater robotics, which had to be imported from abroad consuming a lot of time, as they were not available in India.

Sanchit explained the initial issues, “Since the team was the first one to start a project on underwater robotics in the institute, we did not receive any prior guidance or expertise. We had to do a lot of research on the subject which helped us in developing a concrete intellectual base.”

Structural designing of the vehicle was not easy either, “On the technical side, the major challenges were faced in achieving the waterproofing and static stability of the vehicle as well as in designing a compact robust electrical circuitry,” he further added.

The Structure
The team describes AMOGH as a ‘state of art and a modular design constructed using an intelligent choice of materials’. It is a hydrodynamic dual hull design with a heavy bottom which lowers the centre of gravity (Cg) and provides the stability to the vehicle.

The centre of gravity (Cg) along with the centre of buoyancy (Cb) lie in a single straight line separated by a vertical distance, owing to the symmetry of the components placed on the structure which in turn constrains the rolling motion and provides the with much required static underwater stability to the vehicle.

READ
Automate Your Home, With Just a Switch!

For propulsion, AMOGH consists of five thrusters giving the vehicle five degrees of freedom. The two thrusters on either side of the structure provide surge and yaw motions while those on the front and back assist in heave and pitch motions. The remaining one thruster is placed in the line of Cg and Cb which helps the vehicle with the sway motion.

AMOGH requires a good amount of power and that required power is delivered by lithium polymer (Li-Po) batteries placed inside the bottom hull. There are two 5S, 18.5V Li-Po batteries for powering the thrusters and two 3S, 11.1V Li-Po batteries for powering other necessary electrical peripherals.

It consists of several sensing solutions which provide necessary feedback for intelligent operations. For receiving accurate in-depth readings, the team designed and manufactured a submersible piezoresistive voltage output pressure sensor having an operating range of 2 bars and providing an analog output of 0.5V – 4.5V. Additionally, there is an Inertial Measurement Unit (IMU) for getting the orientation data, two on-board cameras for necessary image feeds, active/passive SONARs for processing acoustic signals, leak detector for detecting accidental water leakage into the hull and Current and Voltage sensors for relaying battery health and vehicle state parameters.

The powerful dual core Intel atom processor carries out all the required processing and the Arduino Mega 2650 micro-controller acts as an interface between the processor and the payloads. The microcontroller drives the thrusters with the help of the motor controllers as directed by the processor.

Top Hull Electronic Enclosure

This whole circuitry is integrated together in a compact fashion through custom designed Printed Circuit Boards and placed inside the top and bottom hulls. A stack of interconnected circular PCBs supported on a rack attached to the motherboard lies inside the top hull and two circular PCBs and a circular switchboard sandwich five lithium polymer batteries together on a metallic rack inside the bottom hull, effectively utilizing the limited space.

READ
Touche: An Affordable Life-Changer For The Visually-Challenged
217_amogh2
Bottom Hull Electronic Enclosure

Future
The thrusters used in the design were imported from abroad, so the team is working to design their own thruster which can efficiently drive the propulsion system and reduce the associated costs. Also, there are numerous applications for which an AUV can be designed and at the same time the development of more advanced processing capabilities and high power supplies is constantly evolving the roles and missions for AUVs.

Speaking about the other future plans, Sanchit said, “The design of our AUV as in its preliminary phase is concentrated towards development of technology for the upcoming industrial versions of the vehicle, which will be targeted towards coastal surveillance and deep sea explorations.”

“We are striving hard to associate the project with industries where we can work and design the AUV for the specific industrial defined problem. As a step ahead to achieve this endeavour, we are participating in various business competitions and exhibitions which can provide it with the required platform to highlight the innovation and extend the industrial outreach. We are trying to associate AUVs with several B. Tech and dual degree projects. This can prove to be a major push for the development of underwater technology as well as to the implementation of AUVs in India,” he added.335_22
