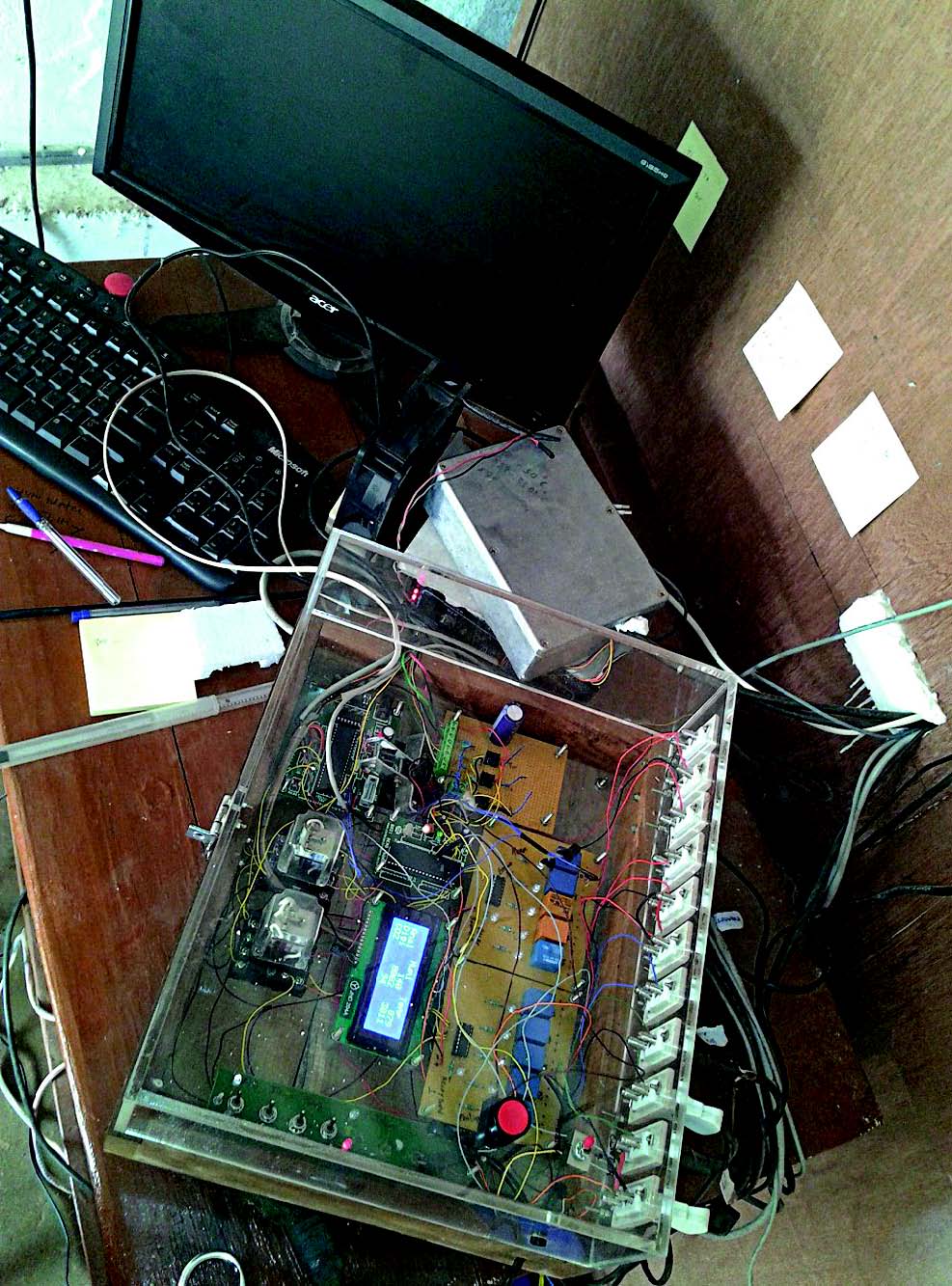

Electronics setup for the incubator

Poultry incubators need a constant source of power to maintain optimal temperature, humidity and other parameters for successful egg hatching. However, In India, power failures are a major headache for the poultry farmers. Some of them have diesel generators to offset the effect, but this drives the cost of eggs up and small-scale farmers get affected the most.

Karthik K.G. and Sakthi Prakash P., managing partners at Pluto India, have come up with an automated battery-run poultry incubator to counter this problem.

What’s an incubator

Explore Circuits and Projects Explore Videos and Tutorials

An incubator is a device that simulates avian incubation by keeping eggs warm and at the correct humidity, to hatch them. Modern incubators are electrically heated with a thermostat.

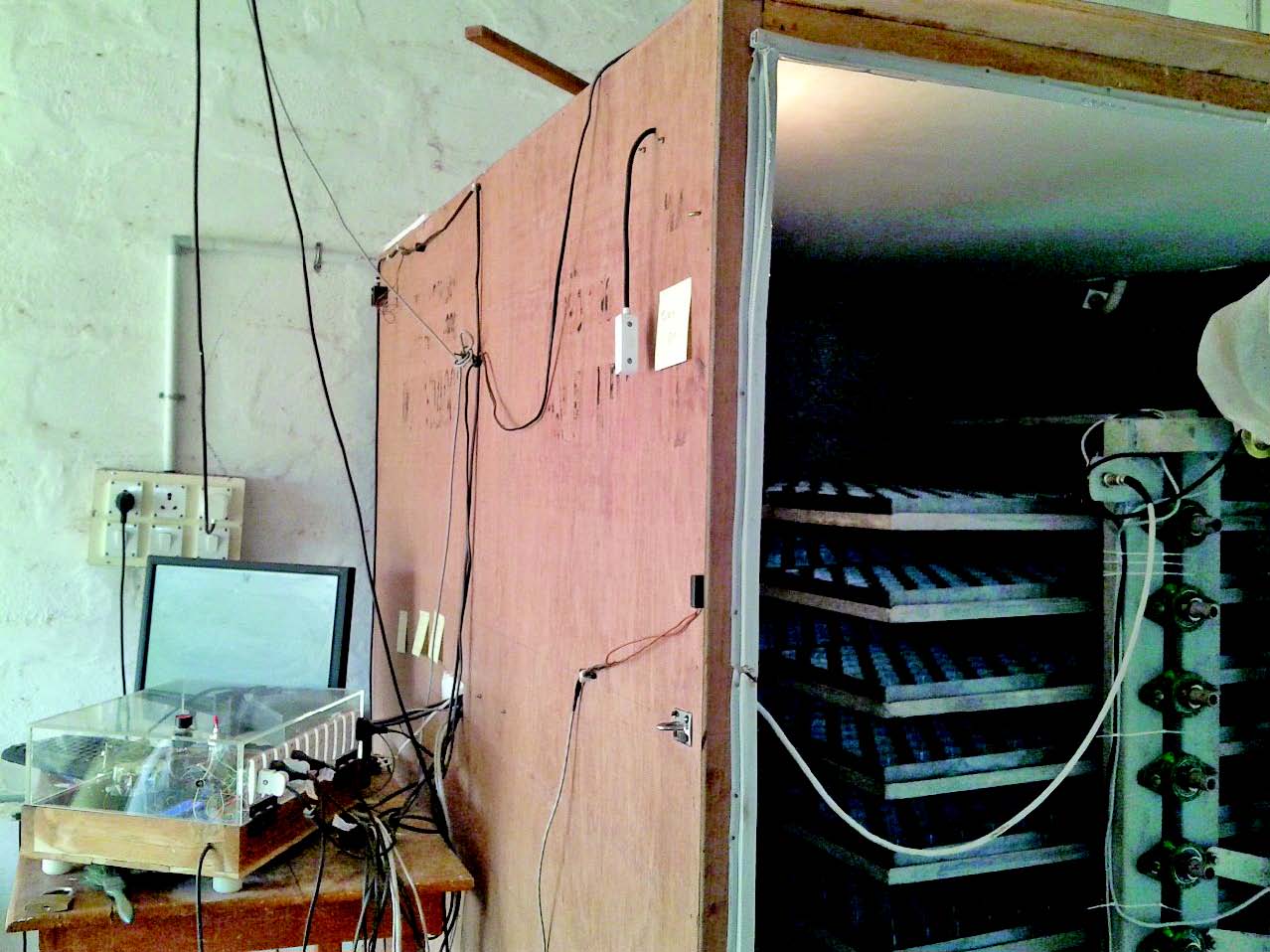

Electronics setup connected to the incubator

The incubator maintains optimal temperature, humidity and air quality (CO2) inside in the total 21 days of incubation. In the first 18 days, eggs are placed in a chamber called ‘setter.’ Here the eggs need to be tilted frequently during the day in order to avoid chicks getting stuck to the egg shell. During the remaining three days, they are kept in a chamber called ‘hatcher.’

Whenever the CO2 level inside the chamber reaches an alarming value, the exhaust fan runs to fill the chamber with fresh air. To maintain temperature and humidity, a heater and an ultrasonic humidifier, respectively, are used.

The solution
The battery-run incubator developed by Karthik and Sakthi uses a 150Ah battery and inverter set-up. While designing a power-efficient solution at every level, they have also ensured the quality of egg hatching. During the first week, they had a pretty low mortality rate for the chicks.

READ
"Give us your M2M problem, and we will offer a solution"

The system is automated, sensing all the parameters associated with a control cycle and logging their status onto a computer. This data includes incubator/hatcher door status, sensor-1 humidity, sensor-2 humidity (redundancy), sensor-1 temperature, sensor-2 temperature (redundancy), CO2 level, tray tilting status, heater status, humidifier status and exhaust fan status.

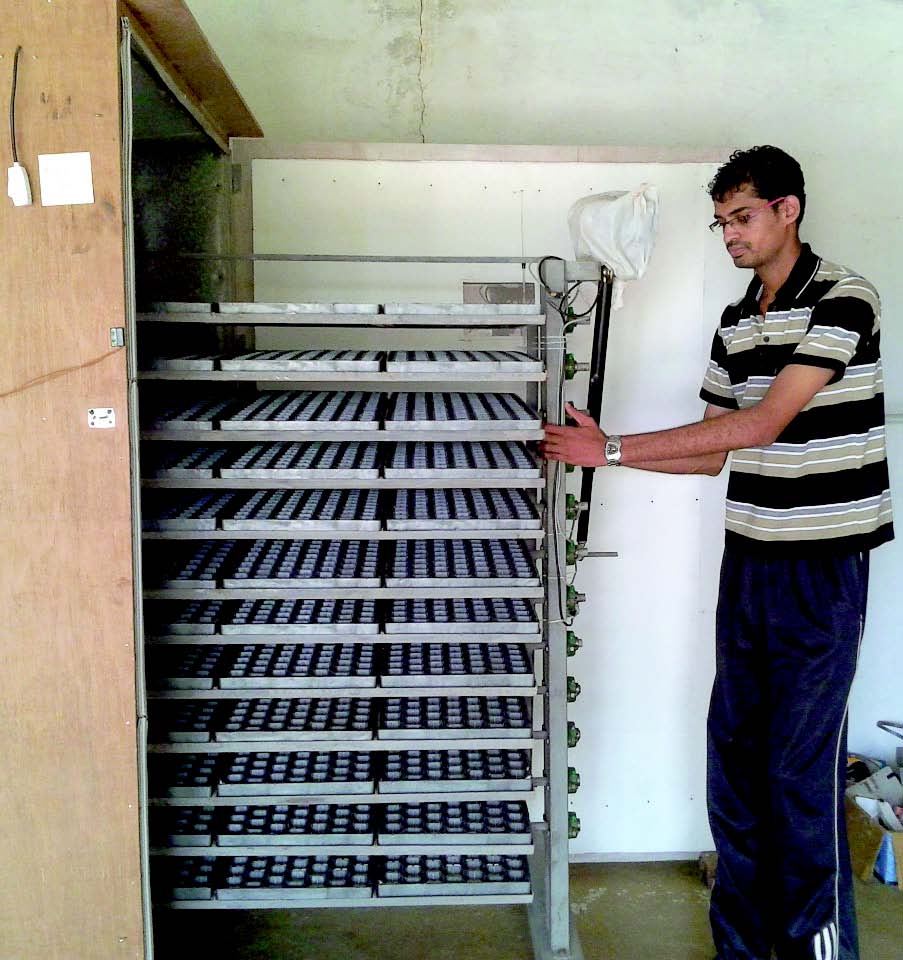

Movable tray tilting setup
Movable tray tilting setup

The logged data is graphically presented on a computer. In case of emergency, the requisite set of notifications is sent to the respective people.

Sakthi explains, “This system works by efficiently utilising a pre-charged battery’s energy, rather than requiring a separate power generator. We have designed electronic measurement and control systems that assist in efficient use of the battery heater. This heater gives the same amount of power as a mains-powered heater would. A typical mains-powered heater operates off 230V AC supply, but a battery heater has to work from 12V DC supply. Hence the heater is designed using a suitable heating element that works off 12V DC supply. To avoid the use of an always-open vent (required to maintain air quality) as in commercial incubators, air quality is monitored to ensure that the vent is open only when required. This is again a big power saver.”

Challenges
Karthik informs that the challenges were mainly three-fold: One related to the relative humidity measurement system, another concerning the battery heater and the third dealing with the mechanical system for the incubator.

Relative humidity. An IC-based sensor was initially used to measure the relative humidity. But it lacked robustness and reliability. The electronics embedded along with the sensing capacitive element was later found to be affected by the outside changing conditions.

READ
Raspberry Pi and M2M Technology Power This Smart Street Lighting System

To avoid the above problem, the electronics was separated from the capacitive element by a coaxial cable. The coaxial cable introduced a new problem of change in its capacitance when the cable was bent for routing. The change in capacitance was very huge compared to small capacitive changes of the sensing element. As bending the cable for routing was unavoidable, the circuit had to be re-designed to suppress the capacitance of the coaxial cable. The circuit was designed and checked for reliability under extreme conditions. Humidity control is achieved by using an ultrasonic humidifier.

Battery heater. To maintain optimal temperature during power cut, the heater is designed to tap the stored electrical energy from the battery in the most efficient way possible. To convert the maximum-possible electrical energy stored in the battery into heat in the incubator, the heater is made to operate off 12V DC rather than 230V AC or 110V AC, which is the usual supply.

Karthik adds, “If we had to use a 230V AC heater even during power cut, it would have required conversion of 12V DC from the battery into 230V AC. Since the inverter efficiency is typically 50 per cent, the method of inverting to AC voltage for heater usage is an inefficient way. Hence a heater had to be designed that worked off 12V DC to avoid wastage of energy.”

To get the same amount of energy from this battery heater as from a 230V AC heater, current flowing through the battery heater is scaled up to 19 times.

READ
A One-Stop Shop for the Custom-Made LTE Stack

Mechanical system. Tray tilting is achieved using a linear actuator. The tilting system avoids vibrations and uses less power (20W). The tray tilting setup is made with wheels. Connections for power and feedback are provided through a single connector. The linear actuator is also mounted on the setup. Incubator walls are insulated using proper material to avoid any thermal leakage.

Prototype
The prototype was tested with around 5000 eggs. Though it cannot be looked upon as a permanent alternative to the diesel generator, it is definitely a much more economical solution for scheduled power cuts of around eight hours (10-12 hours with a 200Ah battery). During a scheduled power cut of two hours in morning, two hours in the afternoon and two hours in evening, it is, without doubt, a very apt solution as the battery also gets ample time to recharge itself.

“During our prototype test, we achieved almost 90 per cent hatch rate. We were also successful in lowering the electricity bill down by 50 per cent,” said Sakthi.

Future additions
Right now, Karthik and Sakthi are working on getting this system patented. Talking about their future plans, they reveal, “We have got some excellent feedback. For the future, we have the idea of using all the data collected to get an insight into the hatching process. Maybe that’s something we would like to do much later.”
