The “Energy Harvesting Solution To Go” Kit

Energy harvesting represents a major leap forward not just for technology but in discovering ways we can live our lives in a way that is less impactful on the environment. It is the science of drawing energy from sources all around us – thermal, solar and motion to name a few. If we can utilize this energy, a whole new set of possibilities open up allowing us to be green yet remain high-tech.

The “Energy Harvesting Solution To Go” Kit provides a very easy access to energy harvesting technologies which helps developers to apply them in future batteryless products. Developers receive a complete solution from harvesting of the energy and energy management, to storage to the application. The transfer of this solution to the development of a batteryless product is made easy by providing the selection of the right components, schematics and software examples.

Contents of the Kit
The two basic parts of the kits are an energy harvesting board and the Giant Gecko starter kit.

Explore Circuits and Projects Explore Videos and Tutorials

In the package, you will find a Giant Gecko starter kit by Energy Micro and a multi-source energy harvesting board by Linear Technology. The energy harvesting board offers two integrated energy sources to start the evaluation immediately: A solar cell (32mm x 50mm) and a thermo-generator (40mm x 40mm). In addition, you can add further external energy sources to the board. Infact, the kit is already running from the solar cell when you receive it. To evaluate your energy consumption, the voltage can be measured in real-time using Energy Micro’s Advanced Energy Monitoring software. The measurement data is collected over the same USB cable used for programming and debugging. No extra tools are required.

READ
NI Enhances NI ELVIS Teaching Platform With New Module for Mechatronics Education and Design

Energy Harvesting Board

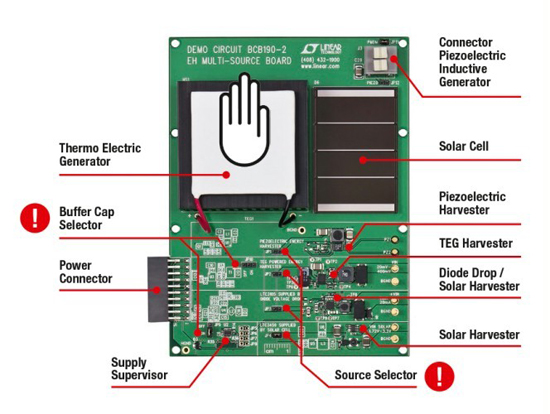

Linear Technology Multi-Source Energy Harvester
Linear Technology Multi-Source Energy Harvester

There are four voltage converters of Linear Technology on the multi-source energy harvesting board as well. These are optimized for the different energy sources like for solar, electromagnetic, piezo-electric or thermal energy converters.

Linear Technology offers the LTC3588 for AC sources up to 20V like for piezo-electric and inductive energy generators. The IC LTC3108 supports very small input voltages of a few mV which are usually supplied by thermo-electric generators (TEG). Solar cells would be utilized ideally with the LTC3105, because this IC provides maximum power point control (MPPC). The LTC3459 together with the LTC2935 are a unique solution, because they can harvest energy from very small solar cells with interior light.

The user can select the appropriate energy converter on the energy harvesting board by setting a jumper. Optionally a bigger capacity could be selected if the energy harvesting cannot be performed well continuously.

Giant Gecko Starter Kit

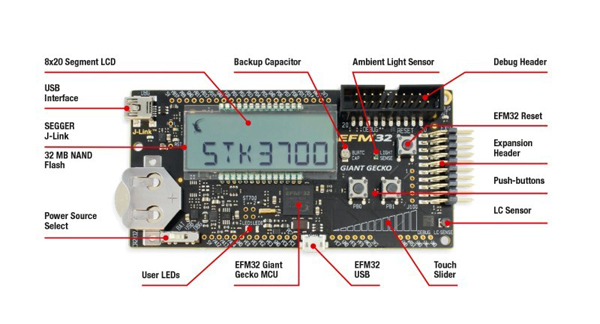

Energy Micro’s EFM32 Giant Gecko Starter Kit
Energy Micro’s EFM32 Giant Gecko Starter Kit

The Giant Gecko Starter Kit is the second part of this development kit. The board contains the most energy friendly microcontroller EFM32 Giant Gecko with the most comprehensive feature set: ARM Cortex M3, 48MHz, 1024KB Flash, 128KB RAM, USB, LCD Control, Low Energy Sense, etc.. The EFM32GG990F1024 can perform complex tasks in the Deep Sleep Mode with a few microamperes and consumes only 200 μA/MHz in active mode. Following features of the starter kits can be used: 160-segment LCD display, 2 programmable buttons, a touch slider, ambient light sensor, an inductive-capacitive metal sensor, 32 MB NAND Flash and an 0.03F super capacitor to evaluate the integrated backup power domain. The programming and debugging of the on board MCU is support by the integrated Segger J-Link interface.

READ
"We need to provide complete solutions, not just products"

All necessary development tools, code examples, software libraries and application notes can be found in Energy Micro’s Simplicity Studio. One part of the Simplicity Studio is the energy Aware Profiler. The Profiler helps to display the current consumption and to create an energy profile of each software function by getting data from the on board Advanced Energy Monitor and the Segger debugger. Thus energy bugs of the application can be found easily.

The Giant Gecko Starter Kit can be connected by a 20 pin expansion header to the energy harvesting board. You can connect all starter kits of the EFM32 family – which consist of 240 compatible parts (4KB-1024KB Flash, 24-120pins) – to the energy harvesting board by this expansion header.

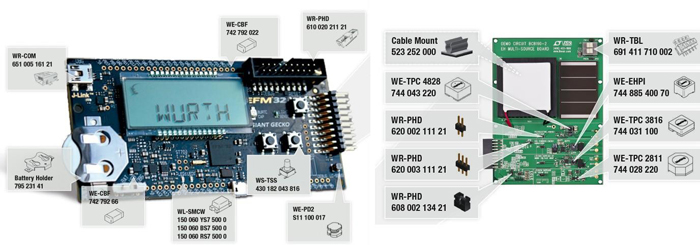

Würth Elektronik Components' used on Energy Micro's Board and Linear Technology's Board
Würth Elektronik Components’ used on Energy Micro’s Board and Linear Technology’s Board

The high efficient passive components of Würth Elektronik are integrated on the energy harvesting board as well as on the Giant Gecko Starter Kit. Particular notice deserve the coupled power inductors WE-EHPI. They convince because of their efficiency based on a very low ohmic resistance of each winding und a core especially developed for a rugged environment. In addition a very efficient EMI suppression is realized by adding SMD ferrites at each plug contacts. Würth Elektronik’s tact switches survive at least 1 million use cycles. The LED series WE-SMCW display the current status with an angle of radiation of 140° and a brightness of 110 mcd.

The microcontroller is preprogrammed with one example. This helps to experience very fast how easy it is to realize a design with energy harvesting thanks to the availability of innovative standard products. The energy which is harvested from a small solar cell in a room or by the heat of your palm is sufficient enough to run an application permanently.

READ
20% Off On All Core Development Tools By Microchip

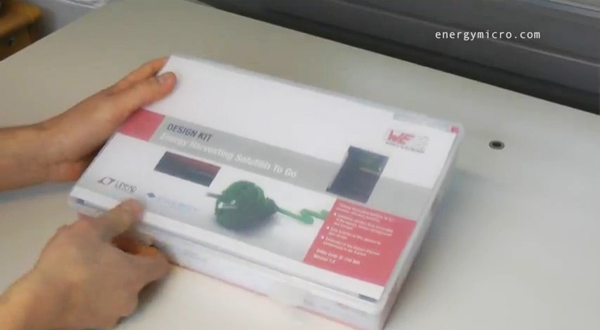

The "Energy Harvesting Solution To Go" Kit in action
The “Energy Harvesting Solution To Go” Kit in action

Benefits

  • The “Energy Harvesting Solution To Go” provides the following benefits:
  • Complete solution from harvesting of the energy, energy management and storage
  • Easy transfer of this solution to your design
  • Evaluation of the highest efficient components in the market

Price
The »Energy Harvesting Solution To Go«-Kit is available at Würth Elektronik for 199 Euro.

Frequently Asked Questions

Do I need to buy a separate debugger/programmer to use the EFM32 GG Starter Kit?
The EFM32 Development Kits and Starter Kits include an integrated J-Link device for debugging and programming. The kits are connected directly to a computer through USB, and can handle debugging and programming of the EFM32. You can also debug and program an EFM32 device on your own circuit board.

I want to collect energy from more than one source at the same time. How can I achieve it?
You can achieve one or more sources by using diodes instead of one jumper (JP1 to JP4) as indicated in the board schematic.

Where can I find code examples for the EFM32 microcontrollers?
Simplicity Studio includes source code for several code examples. Find out how to install Simplicity Studio by following the steps in this article. Under the ‘Examples’ category in Simplicity Studio you will find several examples, sorted by kit. The ‘Application Notes’ category contains all the application notes for the EFM32 microcontrollers, which also include source code examples.
