Maximize Battery Run-Times With MAX17055 High Accuracy, Low Quiescent Current Fuel Gauge

0
327

San Jose, CA—March 30, 2017—Developers of portable devices now have an easier way to design in the most accurate and low power host-side battery gauges with the MAX17055 ModelGauge™ m5 from Maxim Integrated Products, Inc. (NASDAQ: MXIM).

Traditionally, fuel gauges required extensive characterization of each battery type, used in specific applications, for attaining good performance. This meant the customer had to perform complicated battery characterization, adding weeks of time and resources to the design cycle. With the ModelGauge m5 EZ configuration of the MAX17055, battery characterization requirement is eliminated, shortening the customer’s time to market.
One of the main benefits of a fuel gauge is that the system designer can use it to decide when to shut down the device when the battery gets low. If the fuel gauge overestimates the battery life, the shutdown might not happen before the voltage falls below the minimum operating point, resulting in an unexpected crash. Alternately, if the designer shuts down the system prematurely, then the run-time becomes shorter, which is highly undesirable for the user. By offering the industry’s most accurate fuel gauge—within 1% state of charge (SOC) error for most cases—the MAX17055 allows the designer to plan for a shutdown that maximizes the device run-time.

MAX17055 Block Diagram
Block diagram

The MAX17055 draws the industry’s lowest quiescent current—just 7µA in the low power operating mode. It is available in a 1.4mm x 1.5mm WLP for space constrained applications. Unlike other gas gauges, the MAX17055 does not have a minimum battery size limit, making it ideal for wearables, smartwatches, smartphones, health and fitness monitors, body cameras, portable medical devices, hearables, drones, virtual reality gear, and USB Type-C™ portable devices.

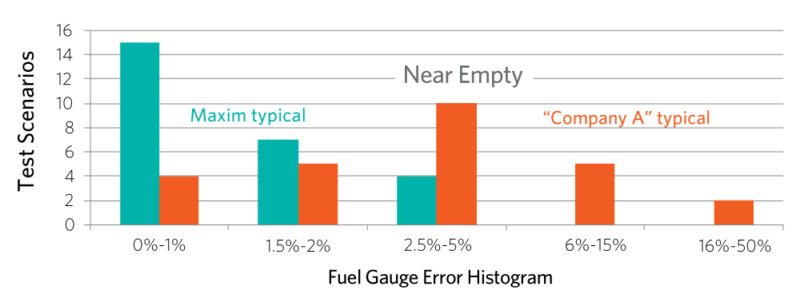

Error histogram
Error histogram

Key Advantages

  • Highest accuracy: Within 1% SOC error in most scenarios for maximum run-time
  • Lowest quiescent current: 18/7µA low-power operation prevents excessive energy loss
  • Easy to design-in: No battery characterization or calibration required with EZ configuration
  • Enhanced user experience: Easy to use and accurate time-to-empty and time-to-full information
