Gesture-Controlled Contactless Switch For Smart Home

To avoid the risk of contracting Covid-19, it is important not to touch surfaces including switches, doorknobs, and keys that have been frequently used by other people. This project is for a contactless switch that works with hand gestures.

The smart switch includes a sensor that can detect hand movements and translate them into commands for controlling lights, fans, and various other home appliances. The author’s prototype for this switch, with its OLED display installed on the wall switchboard, is shown in Fig. 1. The list of components required for designing the gesture-controlled switch is given in Table 1.

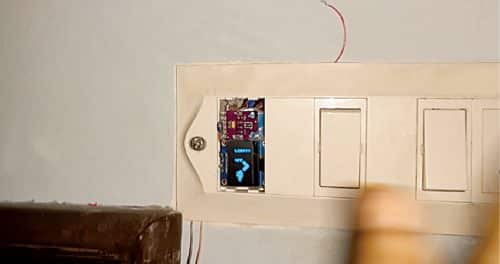

Prototype of gesture-controlled contactless switch with OLED display
Fig. 1: Prototype of gesture-controlled contactless switch with OLED display

- Advertisement -

Coding

First, install the required libraries in the Arduino IDE. Go to Select->Library Manager->Search APDS9960 and U8g2lib as shown in Fig. 2. Then add each library to Arduino code as shown in Fig. 3. Define Arduino pin numbers for controlling the light and fan. Next, create a setup function where you can initialise the sensor and set the pin mode output for light and fan control as shown in Fig. 4.

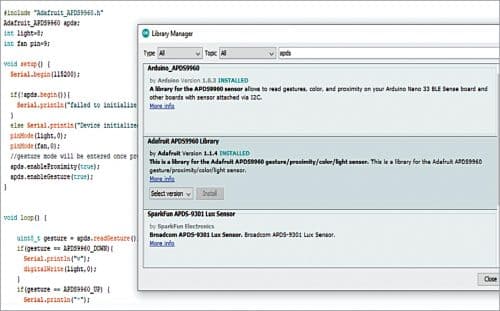

Library Manager window
Fig. 2: Library Manager window

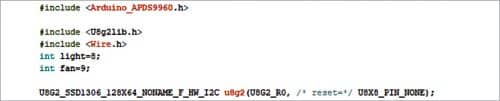

Arduino code with libraries and pin numbers for light and fan
Fig. 3: Arduino code with libraries and pin numbers for light and fan

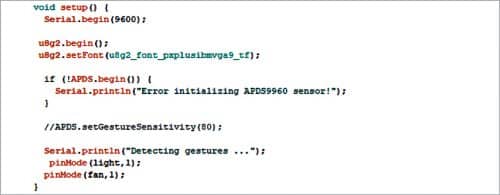

Setup function with pinMode functions
Fig. 4: Setup function with pinMode functions

Create a loop function to update the sensor readings and use your hand gestures as inputs to control Arduino output pins. Also create a switch condition in the code, as shown in Fig. 5, for specifying the commands based on the type of hand gestures (up, down, left, and right). The icons (arrow symbols) below indicate the gestures and commands to be displayed on the OLED:

- Advertisement -

Up: Light on
Down: Light off
Left: Fan on
Right: Fan off

After coding is done, compile it in Arduino IDE and upload the code to Arduino board.

Arduino code with switch conditions
Fig. 5: Arduino code with switch conditions

Connections and testing

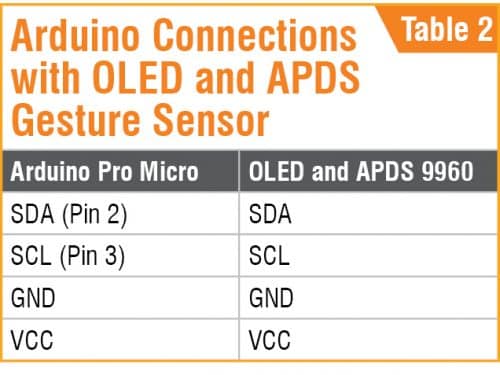

Connect the components as shown in Fig. 6, following Table 2. Then connect the 230V AC mains with the common pin of the relay module to control the light and fan as shown in Fig. 7.

Connection diagram
Fig. 6: Connection diagram
Relay connections with bulb and fan
Fig. 7: Relay connections with bulb and fan

Install the automatic contactless switch on the wall switchboard as shown in Fig. 8. Switch on 5V adaptor to power the device and relay module.

Installation of gesture-controlled switch on wall switchboard
Fig. 8: Installation of gesture-controlled switch on wall switchboard

When you move your hand from down to up direction in front of the sensor, as shown in Fig. 9, light will switch on and at the same time an up arrow will be displayed on the OLED. If you move your hand from up to down position, the light will switch off and a down arrow will be displayed on the OLED.

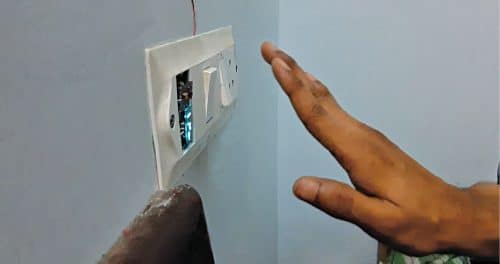

Moving hand up in front of the contactless switch switches on light bulb
Fig. 9: Moving hand up in front of the contactless switch switches on light bulb

Download Source Code

Similarly, when you move your hand from left to right in front of the sensor, the fan will switch on and a left arrow symbol will be displayed on the OLED. If you move your hand from right to left, the fan will switch off and a right arrow will be displayed on the OLED.


Ashwini Kumar Sinha is an electronics hobbyist and tech journalist at EFYi

This article was first published online on 8 September 2020 and was published in EFY Print December 2020 issue.
