Using modular architecture and merging multiple test instruments into one solution with complementing software for test and measurement (T&M) seems to be the trend today. Traditionally, a combination of fixed hardware with an array of resources is employed for testing satellites, and analysing and measuring their signals. But T&M vendors are manufacturing integrated test solutions making it easy for engineers working on satellite communication to upgrade with ease in future. From satellite signal monitoring to signal generation and analysis, there are many equipment from multiple T&M players for enabling establishment of mission-critical satellite systems. In this article, we throw light on some of the latest test equipment for satellite communication and their new capabilities.

One analyser, multiple satellite signals monitoring
In today’s world, technology is progressively advancing and data is correspondingly getting complex. Specifically for satellite systems, spot-beam technology makes data more complex as the same frequency is used to transmit various data signals to diverse geographical locations. One prominent application of spot-beams is in direct broadcast satellite systems used for delivering content via satellites.

Fig. 1: Satellite monitoring using M9393A PXIe VSA with 89600 VSA software (Image courtesy: www.keysight.com)
Fig. 1: Satellite monitoring using M9393A PXIe VSA with 89600 VSA software (Image courtesy: www.keysight.com)

Satellite systems must transmit streams of data to and from ground stations via satellite bands, which could comprise various carriers with differing symbol rates and modulation formats. Therefore monitoring of multi-frequency satellite data becomes an extensive measurement challenge. The advent of new high-throughput satellites also brings further measurement challenges as these integrate multiple channels onto a single transponder, which, in turn, results in monitoring of wider bandwidth signals.

Explore Circuits and Projects Explore Videos and Tutorials

To address the challenges and effectively test and analyse satellite signals, Keysight Technologies recently introduced a satellite signal-monitoring reference solution, which primarily provides components of a satellite ground station monitoring system. A satellite ground station monitoring system essentially makes sure satellite spectrum is utilised in an optimal way. In most of the monitoring configurations (sequential scanning and parallel acquisition are two common configurations), a dedicated test set is assigned to a particular frequency or band. For validating satellite-signal integrity, engineers can monitor huge blocks of spectrum and conduct digital-modulation analysis with the help of this solution.

READ
T&M Tools for Field Engineers

PCI eXtensions for Instrumentation (PXI) is one of the top standards chosen by military and aerospace for high-reliability applications. Based on PXI, this hardware and software solution gives engineers the flexibility to upgrade hardware configurations and use the system for specific signal-monitoring applications such as cross-band timing measurement, carrier power monitoring, logging of measurement results and in-depth modulation analysis for deterministic signals.

PXIe based vector signal analysers (VSAs), namely, M9391A or M9393A, and Keysight’s 89600 VSA software, which provide digital demodulation and spectrum-analysis capabilities, constitute the satellite-monitoring reference solution. Modular architecture based hardware provides engineers the scalability to meet a variety of applications and upgrade as needs change in the future.

Conventionally, multiple analysers are required to monitor several bands in the sequential scanning satellite signal-monitoring configuration. But with M9393 PXIe VSA, diverse bands can be monitored at once. It also allows for quick measurements with multi-band scanning and display refresh rates exceeding 280GHz per second. Users can customise the signal monitoring solution by utilising the measurement setup files as well as test code logging and 89600 VSA software automation layer examples, thereby allowing consolidation in the test environment. With 89600 VSA software, engineers can evaluate modulation, time and complex signal spectrum characteristics. They can also implement spectrum scanning and zoom in on signals using digital vector analysis as wide as 160MHz.

Analyser, monitoring system combo for mission-critical satellite bandwidth
A network-carrier monitoring system is used by satellite operators and government agencies for standard as well as tactical applications for limitless monitoring capabilities. Such systems help protect mission-critical satellite bandwidth and assist in monitoring spectrum and data from extensive remote sites.

With Anritsu making their spectrum/signal analyser MS2830A compatible with SAT Corp.’s Monics (a satellite carrier monitoring system software), interference detection and automated monitoring is made easier to achieve.

155_Fig-2
Fig. 2: Scanning multiple bands (satellite dishes) with a single analyser (Image courtesy: www.keysight.com)
D8F_Fig-3
Fig. 3: Anritsu’s MS2830A spectrum analyser/signal analyser is compatible with Monics satellite carrier monitoring system from SAT Corp. (SAT) (Image courtesy: www.anritsu.com)

In addition to time-domain measurements and signal-modulation analysis, engineers can also perform spectrum radio frequency (RF) measurements such as centre frequency, carrier-to-noise ratio (C/N), bandwidth and equivalent isotropically-radiated power (EIRP), to name a few. With the installation of a driver, MS2830A spectrum/signal analyser can be integrated into the Monics enterprise-networked carrier-monitoring system to provide real-time data for uplink and downlink of satellite communication. Based on stored reference traces and familiar carrier plans, interference too can be detected using this analyser.

READ
Archimedes: A Free Monte Carlo Simulator for Semiconductor Device Simulations

Monics, on the other hand, extends interference detection and signal characterisation. It provides simultaneous manual and automatic monitoring with an easy and efficient user interface. The automatic monitoring compares the expected and actual frequency spectrum, and accordingly alerts the operator in case of abnormalities. It also automatically verifies normal transponder and carrier values like EIRP, C/N, symbol rate and centre frequency to expected values.

Tester for satellite simulation
For distinguishing the performance of a GNSS receiver, several standard tests such as location accuracy, re-acquisition time, sensitivity tests and time to first fix (TTFF) are available. Test runs usually contain complete sequence of tests, each with a distinct scenario. But many global navigation satellite system (GNSS) simulators provide users with only a stipulated number of predetermined scenarios for reiteration. Satellite simulators that empower engineers to simulate a wide range of scenarios should ideally be a part of their satellite testing equipment.

Rohde & Schwarz recently introduced a GNSS simulator in their R&S SMBV100A vector signal generator series, which aims at making GNSS receiver testing comparatively easier by providing users with boundless customised scenarios to execute receiver tests under differing conditions. With a few keystrokes, a user can generate complex with up to 24 satellites including BeiDou, hybrid Global Positioning System (GPS), Quasi-Zenith Satellite System/satellite based augmentation system constellations and Galileo as well as flexible scenarios including atmospheric modelling, moving scenarios and dynamic power control.

D77_Fig-4
Fig. 4: The R&S SMBV100A generates hybrid GPS, Glonass, Galileo, BeiDou and QZSS satellite constellations with minimum position dilution of precision (Image courtesy: www.rohde-schwarz.co.in)
43A_Fig-5
Fig. 5: R&S SMBV100A vector signal generator (Image courtesy: www.rohde-schwarz.co.in)

A few receiver tests might especially need extended simulation times. In such cases, some satellites advance towards the horizon and vanish from sight, while other satellites ascend into view. The auto-localisation mode in SMBV100A automatically supervises the satellites’ settings and rising, thereby ensuring the availability of GNSS signals for as long as these are needed or throughout the entire simulation run.

READ
KTechlab: An Integrated Development Environment

Designing realistic user environments including ionospheric effects, vehicle attitude, antenna characteristics and tropospheric influences is achievable with this generator as these are some of the key parameters that can affect the availability and quality of GNSS signals. SMBV100A vector signal generator is mostly favourable for car infotainment systems and mobile phone manufacturers who use GNSS modules in their systems.

Touchscreen, portable simulator for testing GNSS receivers

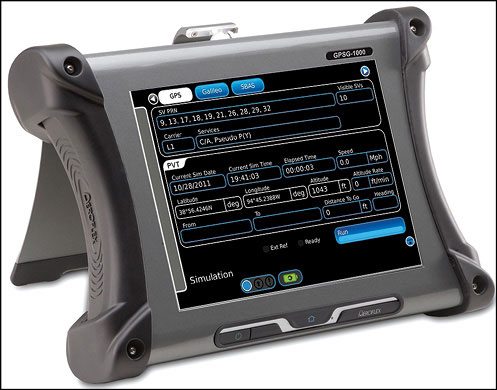

Fig. 6: Aeroflex’s GPSG-1000 portable satellite simulator
Fig. 6: Aeroflex’s GPSG-1000 portable satellite simulator

Simulators are an essential tool for developing satellite operations. Portable simulators provide on-the-go simulation of satellite conditions in a restrained environment.

Aeroflex’s (now a Cobham company) GPSG-1000 is a portable and ruggedised, single-carrier and multichannel simulator for integration, validation and test of GPS and Galileo GNSS receivers for a variety of applications. It can simulate a single 3D point in time or 3D dynamic motion by utilising the available 6-channel or 12-channel configurations. Considering its price point, the simulator aims to fill the market gap between low-end, single- or twin-channel simulators and high-end simulators. Quite recently, Aeroflex also released a new version of operational software for this simulator.

High-frequency portable devices for future satellite applications
To make testing more streamlined, cost-effective and flexible, handheld analysers emerged, and the demand for such instruments grew in the early 2000s. Today’s handheld analysers are a growing market as these integrate multiple technologies and provide engineers with higher connectivity and access to data. From research and development to deployment and maintenance, requirement for low-cost, multi-function test solutions is primarily driven by upcoming satellite programmes to bring the Internet of Things and global broadband access.

Keysight recently introduced a 50GHz FireFox handheld analyser for full characterisation of today’s challenging satellite systems. Also, with 5G and the release of new satellite frequency bands, we could expect manufacturers churning out handheld analysers supporting even higher frequencies in the future.
