LED-Based Running Display

N. PUGALUM PERUMAL

0
327

Here is a circuit that creates an eye-catching running display effect using LEDs. It can be used to light up borders of animations, pictures, etc, and also for short word displays.

The circuit is built around an NE555 timer (IC1), a decade counter IC CD4017 (IC2) and a few discrete components. IC1 is wired as an astable multivibrator whose output is fed to the clock input (pin 14) of the counter.

D75_TABLE

Explore Circuits and Projects Explore Videos and Tutorials

When power to the circuit is switched on, NE555 oscillates to produce clock pulses. These pulses are fed to the clock input (pin 14) of the counter, which starts counting from Q0 to Q5. When output Q0 of the counter goes high, line L1 (LED1 through LED6) glows. When output Q1 of the counter goes high, lines L1 and L2 (LED7 through LED12) glow sequentially. When output Q2 goes high, lines L1, L2 and L3 (LED13 through LED18) glow sequentially. When output Q3 goes high, L1, L2, L3 and L4 (LED19 through LED24) glow sequentially.

When outputs Q4 and Q5 of the counter go high, L1, L2, L3 and L4 (LED1 through LED24) remain lit-up. Further, when output Q6 goes high, the counter automatically resets and the process repeats.

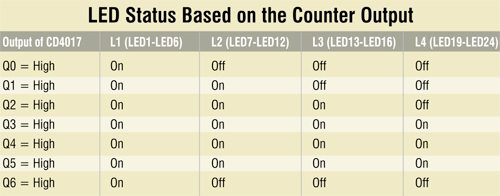

The LED status based on the counter output is shown in the table. Using this table, you can display any word with a running effect. Suppose you want to display ‘STAR.’ Build letter S with L1, T with L2, A with L3 and R with L4. When the circuit is switched on, letter S glows first. Then S and T glow sequentially, followed by S, T and A, and then S, T, A and R. When Q4 and Q5 outputs of the counter go high, the complete word ‘STAR’ glows. Thereafter, letter ‘S’ glows again and the cycle repeats.

READ
Solar Compass with Oled Display

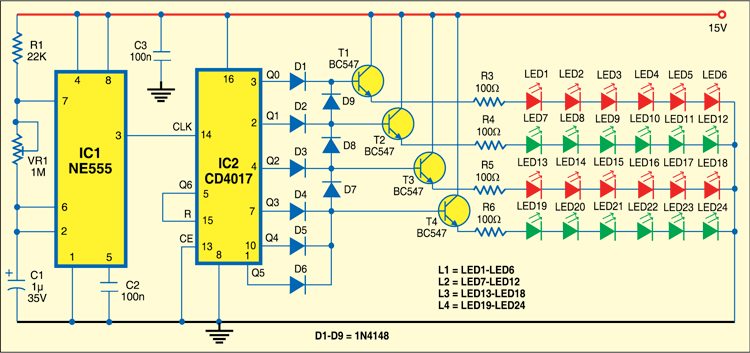

Assemble the circuit on a general-purpose PCB and enclose in a suitable case. Arrange the group of five LEDs as desired—for word display or the border of a pictorial animation.64Z_1
