Verilator is a Verilog hardware description language (HDL) simulator that can compile synthesisable Verilog code into C++ or SystemC. It is designed primarily for high-performance simulations, and supports simple assertions and code-coverage analysis. It is released under GNU LGPL/Perl artistic licence. You can install it on Fedora 20 (x86_64) using the following:

$ sudo yum install verilator

Consider a simple hello.v example.

Explore Circuits and Projects Explore Videos and Tutorials



module hello;

initial begin
$display(“Hello!”);
$finish;
end

endmodule

A C++ wrapper file is written to test drive the hello module.



#include “Vhello.h”
#include

int
main (int argc, char **argv, char **env)
{
Verilated::commandArgs(argc, argv);

Vhello* top = new Vhello;

while (!Verilated::gotFinish()) { top -> eval(); }

exit (0);
}

You can compile the above code with Verilator and generate required simulation files with –cc.

$ verilator –cc hello.v –exe main.cpp

Before running main.cpp, you need to install gcc and gcc-C++ in your system.

This produces obj_dir with Makefiles and C++ code. These generated files can then be compiled using the following:



$ cd obj_dir
$ make -j -f Vhello.mk Vhello

g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=0 -DVM_COVERAGE=0 \
-c -o main.o ../main.cpp
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=0 -DVM_COVERAGE=0 \
-c -o verilated.o /usr/share/verilator/include/
verilated.cpp
/usr/bin/perl /usr/share/verilator/bin/verilator_includer \
Vhello.cpp > Vhello__ALLcls.cpp
/usr/bin/perl /usr/share/verilator/bin/verilator_includer \
Vhello__Syms.cpp > Vhello__ALLsup.cpp
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=0 -DVM_COVERAGE=0 \
-c -o Vhello__ALLsup.o Vhello__ALLsup.cpp
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=0 -DVM_COVERAGE=0 \
-c -o Vhello__ALLcls.o Vhello__ALLcls.cpp
Archiving Vhello__ALL.a …
ar r Vhello__ALL.a Vhello__ALLcls.o Vhello__ALLsup.o
ar: creating Vhello__ALL.a
ranlib Vhello__ALL.a
g++ main.o verilated.o Vhello__ALL.a -o Vhello -lm
-lstdc++ 2>&1 | c++filt

You can test the hello module with the following command:



$ cd ..
$ ./obj_dir/Vhello

Hello!
– hello.v:5: Verilog $finish

Verilator accepts a number of arguments as options. -V lists the version of the software and provides a summary of configuration and environment settings. A pre-processing output of the code is produced with -E, without actually compiling or generating any code. This is illustrated below.

READ
Implementation of FIR Filters Using Rectangular Window



$ verilator -cc hello.v -E

`line 1 “hello.v” 1
module hello;

`line 3 “hello.v” 0
initial begin
$display(“Hello!”);
$finish;
end

endmodule
`line 9 “hello.v” 2

-CFLAGS allows the user to override any C++ compiler flags during the build process. For example,



$ verilator -cc hello.v -CFLAGS -O0 –exe main.cpp

The respective flags are passed to the compiler in the generated Makefiles. -O0 disables optimisation. The user can explicitly specify the level of optimisation with -On, where n is an integer. The highest level of optimisation is -O3.

7AA_Fig_1

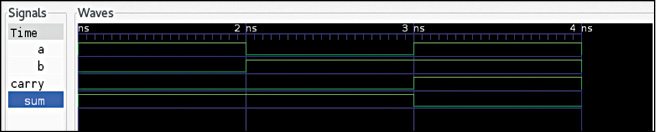

Fig. 1: Waveform

Verilator can also produce SystemC output with -sc. SystemVerilog support also exists, and the relevant code can be generated with -sv.

If you want to analyse the intermediate steps in the compilation process, you can use –dump-tree:



$ verilator –dump-tree –cc hello.v –exe main.cpp

dot -Tps -o ~/a.ps obj_dir/Vhello_01_linkcells.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_21_task_call.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_33_gate_simp.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_34_gate_opt.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_40_orderg_pre.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_41_orderg_acyc.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_42_orderg_order.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_43_orderg_domain.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_44_ordermv_simpl.dot
dot -Tps -o ~/a.ps obj_dir/Vhello_45_orderg_done.dot

–cdc performs a clock domain crossing (CDC) analysis, which can be invoked on an input module as follows:



$ verilator -cc input.v –cdc

Verilator can check for warnings. Consider the following Verilog code:



module test;

wire a, b, c;
and (x, b, c);

endmodule

An implicit warning is produced by Verilator as shown below:



$ verilator -cc lint.v –exe main.cpp

%Warning-IMPLICIT: lint.v:4: Signal definition not found,
creating implicitly: x
%Warning-IMPLICIT: Use “/* verilator lint_off IMPLICIT
*/” and lint_on around source to disable this message.
%Error: Exiting due to 1 warning(s)
%Error: Command Failed verilator_bin -cc lint.v –exe main.cpp

READ
Sound-Operated Intruder Alarm

Lint warnings can be disabled with -Wno-lint.



$ verilator -cc lint.v –exe main.cpp -Wno-lint
$

Verilator can also produce a useful statistics file with –stats. Vhello_stats.txt file is created in objdir for hello.v module.



$ verilator –cc hello.v –exe main.cpp –stats

There also exists –profile-cfuncs that adds profiling code to the generated C++ files. Tools like gprof [2] can be used on the generated output to analyse the input Verilog code.



$ verilator -cc hello.v –exe main.cpp –profile-cfuncs

The following is a half-adder example:



module ha(a, b, sum, carry);

input a;
input b;

output sum;
output carry;

assign carry = a & b;
assign sum = a ^ b;

endmodule

The simulation to test the half-adder example is given by main.cpp file.



#include “Vhalfadder.h”
#include
#include “verilated_vcd_c.h”

unsigned int main_time = 0;

double sc_time_stamp () {
return main_time;
}

int
main (int argc, char **argv, char **env)
{
Verilated::commandArgs(argc, argv);

Vhalfadder* top = new Vhalfadder;

Verilated::traceEverOn(true);
VerilatedVcdC* tfp = new VerilatedVcdC;

top->trace (tfp, 99);
tfp->open (“counter.vcd”);

top -> sum = 0;
top -> carry = 0;

top -> a = 0;
top -> b = 0;

while (main_time < 5 && !Verilated::gotFinish()) { if ((main_time % 4) == 0) { top -> a = 0;
top -> b = 0;
}

if ((main_time % 4) == 1) {
top -> a = 1;
top -> b = 0;
}

if ((main_time % 4) == 2) {
top -> a = 0;
top -> b = 1;
}

if ((main_time % 4) == 3) {
top -> a = 1;
top -> b = 1;
}

top -> eval();

if (tfp) tfp -> dump(main_time);

main_time ++;
}

top -> final();

if (tfp) tfp -> close();

delete top;

exit(0);
}

The while loop handles the different cases for various combinations of the input. Steps to compile, build and test the half-adder example can be automated in a Makefile.

READ
Experimental Study of Switched-Capacitor Circuit



TARGET=halfadder

all:
verilator -cc $(TARGET).v –exe sim_main.cpp –trace

build:
make -j -C obj_dir -f V$(TARGET).mk V$(TARGET)

test:
./obj_dir/V$(TARGET)

clean:
rm -rf obj_dir *~ *.vcd

Sources can be compiled with Verilator using make.



$ make

verilator -cc halfadder.v –exe_main.cpp –trace

The generated C++ code is then built using the following:



$ make build

make -j -C obj_dir -f Vhalfadder.mk Vhalfadder
make[1]: Entering directory `/home/guest/halfadder/obj_dir’
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=1 -DVM_COVERAGE=0 \
-c -o main.o ../main.cpp
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=1 -DVM_COVERAGE=0 \
-c -o verilated.o /usr/share/verilator/include/
verilated.cpp
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=1 -DVM_COVERAGE=0 -c -o verilated_vcd_c.o \
/usr/share/verilator/include/verilated_vcd_c.cpp
/usr/bin/perl /usr/share/verilator/bin/verilator_includer \
Vhalfadder.cpp > Vhalfadder__ALLcls.cpp
/usr/bin/perl /usr/share/verilator/bin/verilator_includer \
Vhalfadder__Trace.cpp Vhalfadder__Syms.cpp \
Vhalfadder__Trace__Slow.cpp > Vhalfadder__ALLsup.cpp
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=1 -DVM_COVERAGE=0 \
-c -o Vhalfadder__ALLcls.o Vhalfadder__ALLcls.cpp
g++ -I. -MMD -I/usr/share/verilator/include \
-I/usr/share/verilator/include/vltstd -DVL_PRINTF=printf \
-DVM_TRACE=1 -DVM_COVERAGE=0 \
-c -o Vhalfadder__ALLsup.o Vhalfadder__ALLsup.cpp
Archiving Vhalfadder__ALL.a …
ar r Vhalfadder__ALL.a Vhalfadder__ALLcls.o Vhalfadder__
ALLsup.o
ar: creating Vhalfadder__ALL.a
ranlib Vhalfadder__ALL.a
g++ main.o verilated.o verilated_vcd_c.o Vhalfadder__ALL.a \
-o Vhalfadder -lm -lstdc++ 2>&1 | c++filt
make[1]: Leaving directory `/home/guest/halfadder/obj_dir’

You can test the code with the following:

$ make test

./obj_dir/Vhalfadder

This produces counter.vcd file, which can be viewed in GTKWave. A screenshot of the waveform is shown in Fig. 1.

Download source code: click here

Install GTKwave before viewing the waveform.

You may also refer to Verilator manual at www.veripool.org/projects/verilator/wiki/Manual-verilator for more options and examples.


Shakthi Kannan is MS in information technology from Rochester Institute of Technology, Rochester, New York, the USA. Currently, he is working as senior engineer (R&D) at Manufacturing System Insights, Chennai. He is a software enthusiast who blogs at shakthimaan.com
