Fire Extinguishing Robot

Fig. 1: Fire extinguishing robot (author’s prototype)
Fig. 1: Fire extinguishing robot (author’s prototype)
Fig. 2: DC water pump
Fig. 2: DC water pump

Fire has always been important to human progress, yet it may be harmful if not handled. While firefighters combat massive flames, early intervention at home can often avoid serious accidents. This project describes the creation of a prototype fire-extinguishing robot that intends to combat domestic fires in their early phases.

Circuit and Working:

This fire extinguishing robot is a prototype (Fig. 1) of the actual one. Sensors used here are simple infrared (IR) photodiodes that detect IR rays coming out of the fire. The sensor board mounted on top of the robot’s chassis is circular in shape so that it gives the robot all-round detection view of 360°. Sensors are equally spaced at 45° each. These act as the eyes of the robot.

In the actual robot, use of fire sensors or IR cameras is recommended. But these are too expensive and hence IR photodiodes have been used as a substitute in the prototype.

- Advertisement -

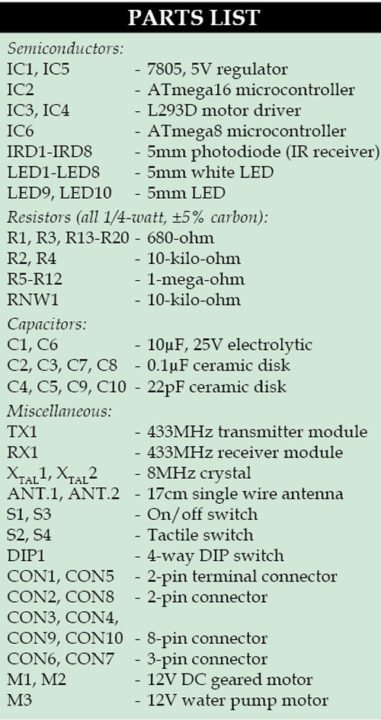

The pump used here symbolizes the fire extinguishing mechanism, and is used as a substitute in the prototype. Also, the body used is not fire-proof. The actual robot must use fire-proof material for proper and better functioning for efficient results.fire extinguisher parts list

IR waves

Wavelengths longer than visible and up to 1mm are termed as IR waves. IR radiation can be felt as radiant heat, for example, when you stand in front of a fire.

- Advertisement -

The light emitted by a burning source comprises IR waves, so by using IR photodiodes as sensors we can detect a fire. This principle has been used in the designing of the sensor board.

DC water pump

A DC water pump is used for the purpose of extinguishing fire. It pumps out water stored in a bottle. The DC water pump is shown in Fig. 2. Any other suitable water pump can also be used.

RF module

A pair of 433MHz RF transmitter-receiver module is used. It allows transmission and reception of serial data without physical connection. The frequency of an RF signal is inversely proportional to the wavelength of the field.

The robot can be made to work in manual as well as in autonomous mode. (Manual mode was tested at EFY Lab.) Different modes of operation are given in Table I. The fire extinguishing robot works in three stages.

Stage 1: Fire detection (autonomous mode)

IR photodiodes are connected in reverse bias as shown in the circuit diagram of the sensor module (Fig. 3). Anodes are commonly connected to the ground and cathodes are connected to the 5V via resistors of 1MΩ each.

Fig. 3: Circuit diagram of the sensor module
Fig. 3: Circuit diagram of the sensor module

Voltage across the photodiode is given as input to ADC pins (PA0 through PA7) of ATmega16. When IR waves fall on the IR photodiode, its resistance decreases from 650kΩ to 150kΩ, reducing the voltage across the photodiode, thus changing the input voltage at the ADC pin. By proper quantisation, the presence and absence of the flame can be distinguished.

Similarly, eight IR photodiodes mounted in a circular fashion on the sensor board help detect the fire; the corresponding LED glows if fire is detected. The cone of detection of the IR photodiode is large, thus decreasing the resolution of the system. This problem can be solved by properly shielding IR photodiodes.

Code to detect the presence of fire using the ADC is as follows:

[stextbox id=”grey”]{
unsigned char v;
v= read_adc(0);
if(v>=0 && v <=128) //Stores the digital value of the analog voltage at ADC 0 fire_detected ( ); if(v>128 && v<=255)
fire_not_detected( );
}[/stextbox]

Stage 2: Extinguishing fire

Constant feedback from sensors is fed to the main module through CON4, and hence position of the fire with respect to the robot is determined. The main module includes an ATmega16 microcontroller, two L293D motor driver ICs to drive motors, a water pump and RF receiver RX1. The circuit diagram of the main module is shown in Fig. 4.

Fig. 4: Circuit diagram of the main module (robot)
Fig. 4: Circuit diagram of the main module (robot)
Fig. 5: Circuit diagram of the RF remote

The basic function of the algorithm is to orient the front sensor in front of the fire so that the nozzle of the pump comes directly above the fire source. When this is achieved, the pump starts and extinguishes the fire.

The robot moves with the help of two motors, whose sense of rotation is controlled by the controller, depending on the feedback from the sensor.

Stage 3: RF communication and manual control (manual mode)

The robot is controlled by the operator with the help of a wireless remote (circuit diagram is shown in Fig. 5) that uses an RF module for communicating with the robot.

6ZE_Table-1 AFE_Table-2

Switches, push buttons and joysticks are provided on the remote that controls various tasks such as autonomous mode selection, reset and starting the pump. For each command, the remote sends a specific character that is received by the robot and the corresponding operation is performed.

Specimen code for autonomous mode is given as below:

 [stextbox id=”grey”]For remote (transmitter):
if(check_bit(&PIND,4)==0)
{
i=’h’; //auto mode
printf(“%c”,i);
}
For robot (receiver):
while(1)
{
scanf(“%c”,&ii);
_delay_ms(10);
switch(ii)
{
case ‘h’: //auto mode
autonomous();
break;[/stextbox]

Software and Programming:

Programming of the AVR is done using embedded C language. It is similar to C language but includes all functionalities of C as well as access to AVR pins, peripherals and controls. C code is converted to hex code using WinAVR.

Hex codes generated are burnt into MCUs for the main module (robot) and the remote module. Working of the program is explained as comments in the main module (robot) and remote module source codes.

Fig. 6: Actual-size PCB of the main module (robot)
Fig. 6: PCB of the main module (robot)
Fig. 7: Component layout of the PCB of main module (robot)
Fig. 7: Component layout of the PCB of main module (robot)
Fig. 8: Actual-size PCB of RF remote module
Fig. 8: PCB of RF remote module
Fig. 9: Component layout of the PCB of the RF remote modul
Fig. 9: Component layout of the PCB of the RF remote modul

The program jumps to the main function where the object code actually starts. At remote module, a DIP (DIP1) switch is interfaced using which you can select operating mode (autonomous or manual), switching of the water pump, reset all settings or LED indicators test mode as given in Table I.

Tools used are described below:

WinAVR

WinAVR is a suite of executable, open source software development tools for Atmel AVR series. It includes GNU GCC compiler for C and C++, Programmer’s Notepad, Makefile, etc.

Programmer’s Notepad (PN)

This is a source editor with some IDE features. PN can call any command-line tool and capture its output. It is ideal for calling make utility, which executes make file, which, in turn, calls the compiler, linker and other utilities used to build your software.

Makefile

WinAVR now includes MFile utility, an automatic make file generator for AVR GCC, which can run on various platforms including Windows, FreeBSD and Linux. You can use this utility to quickly generate make files for your project based on some simple menu input.

Construction and Testing:

A single-side PCB of the main module is shown in Fig. 6 and its component layout in Fig. 7.

A single-side PCB of the RF remote module is shown in Fig. 8 and its component layout in Fig. 9.

Fig. 10: Actual-size PCB of the sensor module
Fig. 10: PCB of the sensor module
Fig. 11: Component layout of the PCB of the sensor module
Fig. 11: Component layout of the PCB of the sensor module

Download PCB and Component Layout PDFs: Click here

Download Source Code: Click here

A single-side PCB of the sensor module is shown in Fig. 10 and its component layout in Fig. 11.

You can also assemble the circuit on a general-purpose PCB. Before mounting the MCUs on PCBs, burn respective codes into MCUs using a suitable programmer board.

After mounting all components on PCBs, switch on the power supplies of respective units.

At the main module (robot), initially four LED indicators glow on even pins of PORTB of IC2 by default, and the robot waits for the signal from RF remote. You can also test all the LEDs by pulling port PD6 of IC6 low through DIP1 switch.

For manual mode there are two joysticks connected at ADC channels of the controller (PC0 and PC1) at remote module. By using the joystick, robot movements can be controlled.

Move your robot towards the fire source. Pull PD5 of IC6 to low through DIP1 switch to switch on the water pump.

For troubleshooting the circuit, check to ensure voltages at various test points are as per Table II.

Applications:

1. By replacing IR photo sensors with the thermal image-processing camera, the pump with a fire extinguishing mechanism and by making the body of the robot fire-proof, it can be used for fire extinguishing purposes. It can also be used in assisting fire fighters, thus helping them reach inaccessible places to save more lives.

2. Increasing the number of sensors will improve the resolution and accuracy of the system further.

3. In autonomous mode, it can detect a fire, if any, and extinguish it without any assistance.

4. The RF module makes it possible for the operator to control the robot manually from a distance, thus allowing surveillance facility.

Limitations:

IR photodiodes also react to sunrays, just like fire, since these too contain IR waves, thus allowing the robot to make false judgments. However, the effect of sunlight and other factors is not significant if we use better sensors (which are far more costly).

Potential Upgrades for Enhanced Functionality:

  1. Enhanced Sensors: Use flame-specific sensors for more precise detection.
  2. Heat-resistant Materials: Heat-resistant materials boost durability under actual fire circumstances.
  3. Advanced Navigation: Use GPS or obstacle detection to improve movement in difficult terrain.
  4. Battery Management: Add a battery indication or automated charging for prolonged use.

This fire-extinguishing robot is a working prototype that displays an economical, automated method for properly dealing with minor residential fires. It can be further customized to provide more complex features for industrial or commercial use.


Amol Gulhane is B.Tech (electronics and telecommunication) from College of Engineering Pune, and is co-founder of Robolab Technologies

This article was first published on 8 April 2017, and recently updated on 28 October 2024.
