It combines advanced connectivity options, robust security, and interoperability to meet the demands of smart grid and automation systems.
This reference design offers an open, IPv6 standard-based universal data concentrator solution capable of supporting a wide range of connectivity devices such as Ethernet, 6LoWPAN mesh networking, and RS-485. As industrial markets increasingly adopt IPv6-based grid communications, applications like smart metering and grid automation leverage this design for its comprehensive networking capabilities. The universal data concentrator integrates IPv6-enabled Ethernet backbone communication, 6LoWPAN RF mesh networking, and RS-485 interfaces into a versatile platform. The 6LoWPAN mesh network addresses critical requirements, including standard-based interoperability, reliability, robust security, and long-distance communication.

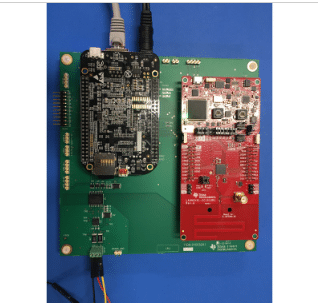

This design, TIDA-010032 by Texas Instruments, supports the remote control and monitoring of end devices through an embedded web server accessible via Ethernet connectivity. The design offers 3.3-V and 5-V voltage rails and peripheral interfaces for expanded connectivity options, such as broadband power-line communication (PLC), cellular, and Wi-Fi. These features make the data concentrator a future-ready solution for modern industrial applications.AM335x Microprocessor based on the ARM Cortex-A8 architecture, this microprocessor enhances performance with integrated image and graphics processing, industrial interfaces, and options like EtherCAT and PROFIBUS, catering to high-demand industrial applications. CC1312R Wireless MCU, A Sub-1 GHz wireless microcontroller supporting Wireless M-Bus, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), Zigbee, KNX RF, Wi-SUN, and proprietary protocols. It delivers robust wireless communication for IoT applications.
THVD1500 RS-485 Transceiver half-duplex transceiver is designed for industrial use, providing immunity to high-level IEC contact discharge ESD events. It reduces the need for additional system-level protection components.,ISOW784x Digital Isolator, A high-performance, quad-channel reinforced digital isolator with an integrated high-efficiency power converter, ensuring reliable and efficient signal isolation for industrial environments. This system ensures universal connectivity, accommodating Ethernet, 6LoWPAN mesh, and RS-485 devices to cater to diverse industrial applications. It is IoT-ready, facilitating Internet of Things (IoT) services via an integrated web server and Ethernet backbone communication. This IPv6-based universal data concentrator design is a cutting-edge solution for modern industrial and IoT applications.
TI has tested this reference design. It comes with a bill of materials (BOM), schematics, assembly drawing, printed circuit board (PCB) layout, and more. The company’s website has additional data about the reference design. To read more about this reference design, click here.
