Smart GPS Geofencing System

Geofencing is one of the greatest technologies of the 21st century. It has a multitude of applications such as car tracking and parcel location tracking. Here is a more exhaustive list of the applications of Smart GPS Geofencing System-

• Can be used for livestock and other animals to track their movement
• Can be used to monitor prisoners or people under house-arrest
• Can be used for the protection of valuable items
• Can be used by parents for child monitoring
• Can be used in rental cars

Geofencing systems are easy to make and have plenty of uses, which is why today we will be making a smart Geosystem. We will be using the SIM800l module and a Buzzer for the Distance Alert and notification system. For geolocation, we will use a NEO 6M Gps module. We will also connect an I2C OLED Display that tells us the distance between the base and the current location. In this device, we will set a base location and a threshold distance.

When the device detects that it is moving beyond the prescribed distance, the buzzer attached to pin 13 will automatically start to alert and at the same time, the Sim800l will send a message to set numbers alerting them of the crossing of the set distance.

- Advertisement -

Let’s start our project by shopping for the following components:

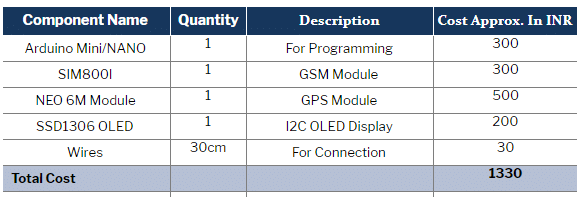

Bill of Materials

- Advertisement -

Prerequisites

Assuming that Arduino IDE is already installed in your system, we have to do some basic setup of the required library. To do so, go to Sketch menu–>click the manage library option –>in Library manager window search the library (“Adafruit FONA”, ”NMEA GPS” and “SSD1306 ASCII”) one by one and install them.

Now after the installation of the library, we can proceed to the coding part.

Smart GPS Geofencing System – Code

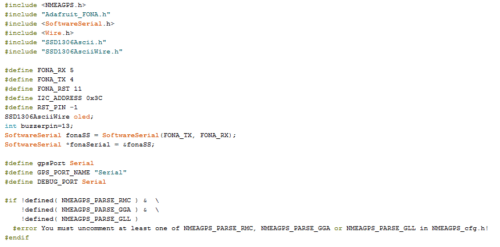

In the first part of the code we need to initialize the required library (“Adafruit FONA”, ”NMEA GPS” and “SSD1306 ASCII” ) then we have to define the pin numbers for Serial Communication with SIM800l Module. After that, we will set up the base location from where we want to start the geo-fencing, or, you can say, the center point of Geofencing. (Refer Fig 1, 2).

Next, we will create a setup function where we have set the baud rate for the sim800l Module to 4800 which is the default baud rate of our GSM Module. Next, we will set the baud rate for GPS Module as 9600. Here, we have used the hardware serial port of Arduino for both serial debugging and for communication with the GPS module. Next, we will set the OLED Display and initialize communication with the OLED Display.

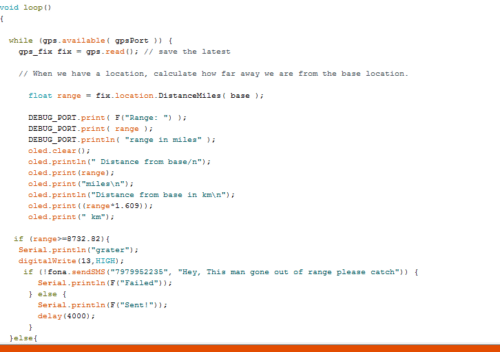

Next, we will create a loop function that runs repeatedly and checks the GPS Location, and updates the location on OLED DIsplay. In the same loop, we have created an If condition where we have set the threshold distance or, you can say, the max distance up to which one can be allowed to travel from the base location. If anyone crosses this distance, the device sends an alert and also sends a message to set numbers informing them of the geofencing break.

Now, after completing the code, select the Right Port and Board of Arduino and upload it to the Arduino board. After the successful upload of code connect all the components as shown in Circuit Diagram in Fig 5.

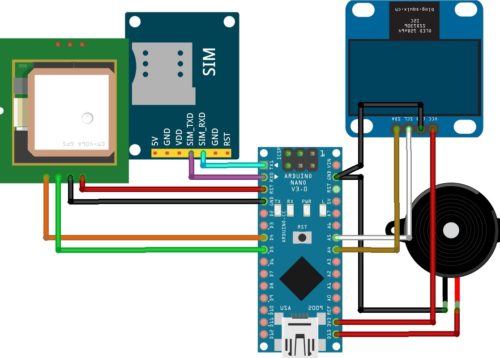

Smart GPS Geofencing System – Circuit Diagram

Testing

Now after connecting all the components, cross-check the connection and then power the Arduino board with a 5-10 V battery and wait a few minutes. This allows the GPS Module to search the satellite and calculate the location of the device. When the GPS Module gets the location and establishes the connection with the satellite, the red light on the board will start to blink.

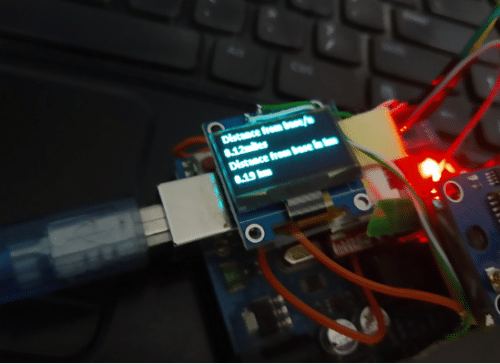

Now insert a 2G sim in the SIM800l module and wait for a few minutes so that the module registers to the network. Now the display starts showing you the distance away from the base location and when you go too far from the base location and cross the threshold distance, the device will automatically alert you and send the message to the phone.
