LED Driver For Railside Applications

- Advertisement -

Built to withstand harsh environments, this IP65-sealed unit is dust-tight and waterproof and designed to power critical sensors, control systems, and track lighting.

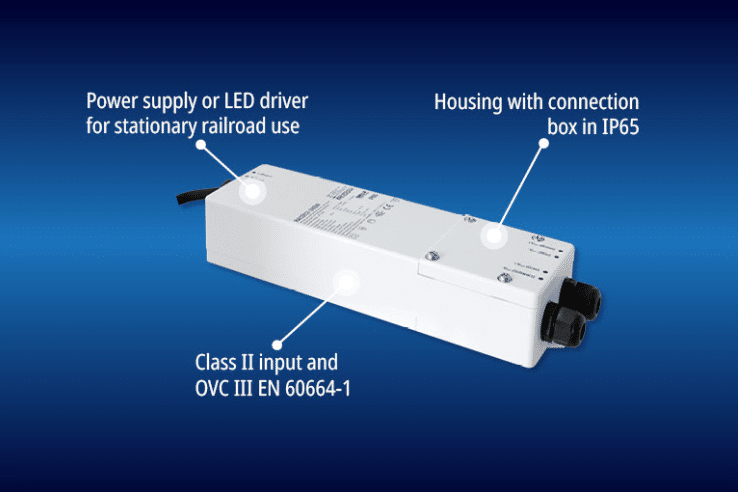

RECOM introduces the RACV22-24SW, a cost-effective 22W LED driver designed for trackside rail applications, crafted to be “fit and forget.” The rugged build and advanced features make it ideal for high-reliability, long-life applications, such as powering sensors, control units, and track lighting for DB InfraGO AG’s low-level lighting needs.

This constant voltage LED driver, accepting an AC input, offers stable 24VDC output at over 87% efficiency under a full 22W load. It operates in temperatures ranging from -30°C to +50°C without derating, providing reliability in challenging outdoor environments. The IP65-rated enclosure is dust-tight and waterproof, perfect for railside installations exposed to varying weather conditions. It complies with all rail EMC standards and is rated Class II, ensuring safe, reliable operation with reinforced isolation that meets “Lamp Control Gear” and “Luminaire” requirements.

- Advertisement -

The key features are:

  • Full power up to +70° housing temperature
  • Power (W) 22.0
  • Vin (V) 176.0 – 264.0
  • Main Vout (V) 24
  • Isolation (kV) 3.2

With dimensions of 294.0 x 76.0 x 40.0mm, the driver features flying leads for AC input and Wago terminals for output, simplifying installation and maintenance.It is built to last with a service life of over ten years and comes with the company-backed 5-year warranty, underscoring its durability and reliability.

This AC/DC isolated LED driver is designed with a single output and supports chassis mounting, providing ease of installation. It features an encapsulated IP65-rated package, making it highly durable and suitable for harsh environments. Certified with CB, CE, EN 61347-1, and ENEC standards, this driver meets strict international safety and quality benchmarks. It offers comprehensive protection mechanisms, including Over Current Protection (OCP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP), ensuring reliable performance and safety.

Aligned with REACH, RoHS 2+ (10/10), and WEEE directives, this product adheres to environmental and health safety standards, packaged in an eco-friendly cardboard box. Operating in a Constant Voltage (CV) mode, the driver provides regulated output for consistent power delivery. With a robust 5-year warranty, this LED driver is engineered for longevity and dependability in demanding applications.

Marco Kuhn, RECOM’s Product Manager for Mobility, shared, “Our IP65-rated LED driver is designed for top efficiency, with low power loss and full output at up to +50°C ambient temperature. It’s a solution you can rely on, backed by our commitment to quality.”

For more information, click here.

Akanksha Gaur
Akanksha Gaur
Akanksha Sondhi Gaur is a journalist at EFY. She has a German patent and brings a robust blend of 7 years of industrial & academic prowess to the table. Passionate about electronics, she has penned numerous research papers showcasing her expertise and keen insight.
