- Utilizes low loss temperature stable materials
- Offers small size and minimal performance variation over temperature

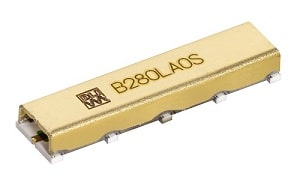

The B280LA0S from Knowles (DLI) is a 28.0 GHz surface mount Bandpass Filter is one of the filters designed for the mmWave 5G. This filter utilizes low loss temperature stable materials which offer small size and minimal performance variation over temperature. Such BPF’s are offered in a variety of frequency bands, which offer a drop in solution with highly repeatable performance.
Features
- Small size with high performance
- Fully shielded component designed for use on most RF PWB materials
- Solder surface mount package, moisture sensitivity level: MSL1 and frequency stability over temperature
The B280LA0S is a 28 GHz bandpass filter with 1000 MHz pass band. Measuring 13.97x 3.56 mm, this surface mount filter offers 4 dB typical insertion loss with 40 dB out-of-band rejection.
