With a wide ohmic range they deliver flexibility and durability for demanding industrial, consumer electronics, and telecom applications.

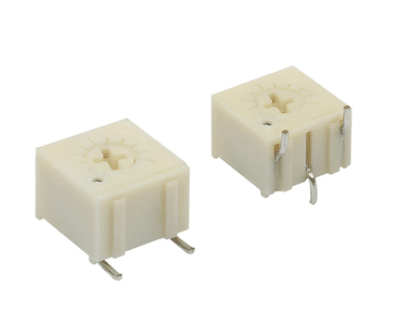

Vishay has launched its TS7 series of single-turn, surface-mount cermet trimmers, designed to maximize efficiency and adaptability in compact spaces. Measuring just 6.7 mm by 7 mm with a 5 mm height, these trimmers support automated assembly and precise setting processes, streamlining production and reducing costs for manufacturers. Engineered for durability and versatility, the TS7 series is ideal for applications requiring reliable, compact components.
The key features are:
- 0.5 W at 70 °C
- Professional and industrial grade
- Wide ohmic range (10 Ω to 2 MΩ)
- Small size for optimum packaging density
- Top and side adjust styles
The series trimmers are designed with a fully sealed construction, providing superior resistance to typical board wash processes often used during manufacturing. This feature ensures that the trimmers maintain their durability and reliability, even under demanding conditions common in industrial, consumer electronics, and telecommunications applications. These sealed trimmers are highly suited for use in environments where robust and long-lasting components are critical.
With a power rating of 0.5 W at +70 °C, the trimmers can withstand high temperatures while delivering consistent performance, making them an excellent choice for applications that require both resilience and reliability. Engineers can select from top and side adjustment configurations, allowing flexibility to adapt to various design layouts and easy integration into different systems. This adaptability helps engineers optimize the trimmers’ layout and orientation according to their projects’ specific requirements.
The series offers an impressive ohmic range, spanning from 10 Ω to 2 MΩ, making it versatile enough to meet a wide variety of circuit needs. This broad range of resistance options allows the TS7 series to address an extensive array of application requirements, ensuring compatibility with numerous electronic circuits and designs.
Currently, samples and production quantities of the TS7 series trimmers are readily available, allowing engineers to evaluate the product before full-scale implementation. Production orders have an anticipated lead time of approximately 17 weeks, supporting timely project planning and development for applications requiring these reliable and adaptable components. For more information, click here.
