Compact Right Angle Edge Surface Mount Tact Switch

- Advertisement -

Provides a life expectancy of 600,000 cycles and suitable for audio/visual equipment, computer peripherals, computer electronics and more

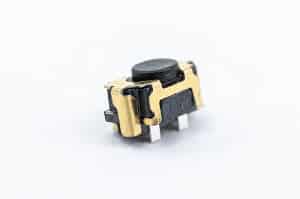

The TL4115 is a tact series by E-Switch, which is a right-angle edge surface mount design and provides a life expectancy of 600,000 cycles in a 4.50mm x 2.20mm x 2.60mm footprint. This switch series features a soft round actuator and provides 160gf or 220gf operating force options.

- Advertisement -

The TL4115 series features include SPST Off-(On) function; 50mA, 12VDC contact rating, dielectric strength of 250VAC for 1 minute; operating temperature ranges from -30°C to 85°C; travel is 0.15mm and comes in tape and reel packaging.

This tact series is suitable for audio/visual equipment, computer peripherals, computer electronics, medical equipment, telecommunication devices, and test & instrumentation equipment.

Specifications include:

• Contact Rating: 50mA, 12VDC
• Electrical Life: 600,000 Cycles
• Contact Arrangement: SPST Off – (On)
• Contact Resistance: 500m Ω Max. Initial
• Insulation Resistance: 100MΩ Min. @100 VDC
• Dielectric Strength: 250VAC for 1 minute
• Operating Temperature: -30°C to 85°C
• Operating Force: 160gf± 50gf, 220gf±70gf
• Travel: 0.15mm
• Bounce: 10m sec. max.
