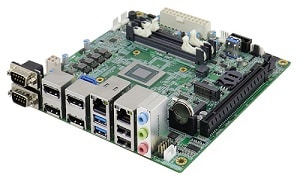

MI989 Mini-ITX Motherboard Based On AMD Ryzen Embedded V2000

- Advertisement -

Offers up to eight CPU cores and 16 threads, providing unprecedented speed and power efficiency for multiple embedded applications

IBASE Technology Inc. has released the MI989 Mini-ITX motherboard with AMD Ryzen Embedded V2000 Series processor that offers up to eight CPU cores and 16 threads, providing unprecedented speed and power efficiency for embedded applications in retail, healthcare, industrial automation and smart cities. The AMD Ryzen Embedded V2000 family is built with 7nm process technology, achieving up to 30% better CPU performance and up to 40% faster graphics performance than previous generation counterparts.

- Advertisement -

“By partnering with AMD, we are able to deliver powerful embedded boards and solutions to our customers. The AMD Ryzen V2000-based MI989 boasts system performance improvements, system security features and an excellent performance-per-watt ratio with a TDP range between 10W to 54W,” said Wilson Lin, Director of IBASE Product Planning Department.

The MI989 features a 5G-compatible M.2 3052 socket and is packed with advanced graphics capabilities and versatile I/O connectivity. The integrated new generation AMD Radeon Vega graphics can drive four independent displays in full 4K resolution. The board also features support for up to 64GB DDR4-3200 modules, two GbE LAN controllers, TPM 2.0 hardware security, and expansion slots such as PCI-e(x16), M.2 E-key, M.2 B-key, and M.2 M-key. Measuring 170x170mm, MI989 has external ports for 2x COM, 4x DP (1.4), 2x USB 2.0, 2x LAN, 2x USB 3.0, and jacks for HD audio.

MI989 Features

  • AMD Ryzen Embedded V2000 processor on board
  • 2x DDR4 SO-DIMM, Max. 64GB, ECC compatible
  • Dual Intel Gigabit LAN
  • 4x DisplayPort 1.4
  • 3x USB 3.1, 2x USB 2.0, 4x COM, 1x SATA III
  • 1x PCI-E(x16), 3x M.2 (5G-compatible B-Key 3052, E-Key and M-Key)
  • Watchdog timer, Digital I/O, TPM 2.0
