Ruggedised DC-DC Converters With 3kVAC Reinforced Isolation

- Advertisement -

These products operate over an ultra-wide 4-1 input range with up to 90% efficiencies and operating temperatures from -40°C to 80°C

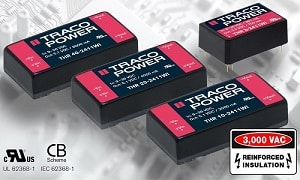

TRACO POWER announces their new THR-WI series of 3 / 10 / 20 / 40 watt DC-DC Converters with double / reinforced insulation providing up to 3,000 VAC Isolation. These products operate over an ultra-wide 4-1 input range with up to 90% efficiencies and operating temperatures from -40°C to 80°C (105°C maximum case temperature).

- Advertisement -

THR 3 (3 Watt) models offer DIP 24 footprints and the THR 10 / 20 / 40 (10 / 20 / 40 Watt) come in 2×1” footprints. Input ranges include 9~36 / 18-75 / 40~160 VDC and provide single & dual outputs ranging from 5~24 VDC. Fully encapsulated models withstand shock and vibration standards per IEC / EN 61373. Internal input filters enable EN 55032 class A compliance (3 /10 / 20 watts) and overload, overvoltage and short-circuit protection. With the latest IT safety certifications (IEC/EN/UL 62368-1), the THR-WI series is the perfect choice for many demanding applications in the industrial, transportation and instrumentation sectors.

Products are in stock and available through TRACO POWER’s global distribution network.
