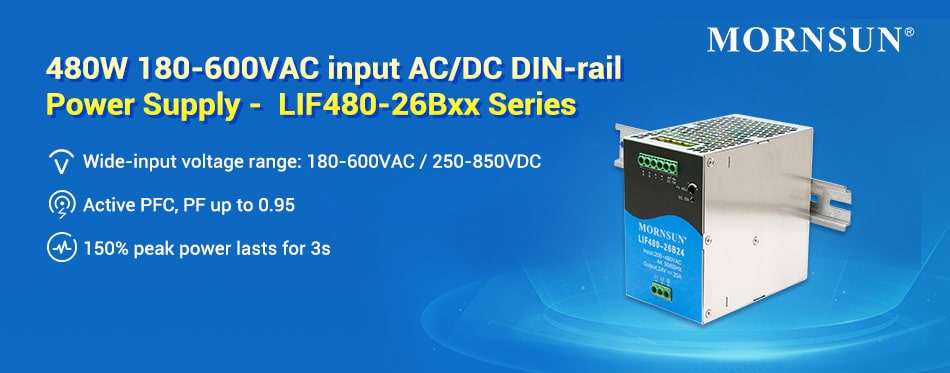

480W 180-600VAC Input AC/DC DIN-Rail Power Supply

- Advertisement -

MORNSUN has unveiled a new addition to its LIF family – the LIF480-26Bxx, a 180-600VAC wide-input ranged AC/DC DIN-rail power supply. They are the reliable and affordable power supply to meet the demands of single-phase or 2-phase applications.

Advantages

  • Ultra-wide input voltage range

180 – 600VAC/250 – 850VDC, AC or DC input at the same terminal, suitable for the applications in a harsh input environment, such as wind power, PV, logistics, DC EV charging, and industrial.

  • High performance

1. High efficiency up to 94%, with output short circuit, over-current, over-voltage, and over-temperature protections.

- Advertisement -

2. 150% peak load for 3 seconds, with large transient load capacity.

  • High reliability

1. OVC III (2000m altitude, EN61010)

2. 3-year warranty and ultra-long lifespan, MTBF up to 300,000h

3. Safe and reliable with isolation voltage up to 4000VAC

4. Outstanding EMC performance with a solid anti-interference ability to provide stable voltage

  • Compliance with multiple certifications

Compliance with UL61010-1, UL61010-2-201, UL508 & UL/EN/IEC/BS EN62368-1, EN62477, IEC60664 standards.

Applications

The power supplies can be widely used in applications with single-phase or two-phase power connections, and the applications in a harsh input environment, such as industrial and DC EV charging, crediting to the high performance of the stable, anti-interference, and electrical specifications. (When applied to two-phase, may select any two live wires to connect.)

The products should be used in natural air cooling environment, if used in a closed environment, please get in touch with our FAE team for more details.

Typical application: Rotary cutter

Features

  • Universal Input voltage range: 180-600VAC / 250-850VDC
  • Active PFC, PF up to 0.95
  • Operating temperature range: -40℃ to +85℃ (50℃ @full load)
  • DIN-rail mounting
  • High efficiency, high reliability
  • LED indicator for output status
  • 150% peak power lasts for 3s
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • DC OK function
  • Double-sided conformal coating
  • Operating altitude up to 5000m
  • OVC III (design refer to EN61010 with altitude of 2000m)
  • Design refers to UL508, UL61010, UL/IEC/EN/BS EN62368

Author: Mornsun Power
