555 Timer Monostable Circuit Calculator

- Advertisement -

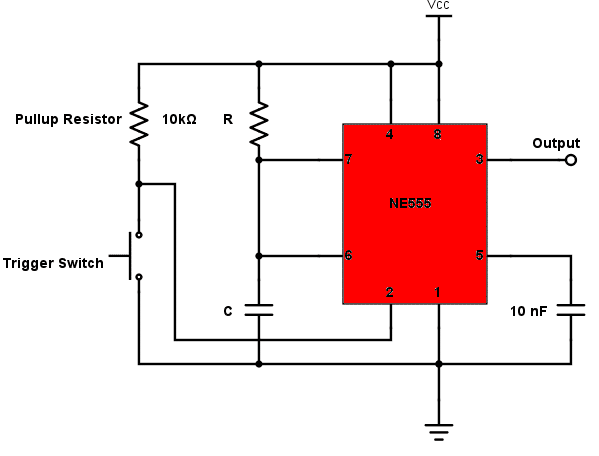

This calculator computes for the output pulse width of a 555 timer monostable circuit

Inputs

Capacitor (C)
Resistance (R)
\

Outputs

Output Pulse Width (T)
s

Output

The 555 Timer IC is one of the most versatile and widely used components in electronics. In monostable mode, the 555 Timer generates a single pulse of a specified duration when triggered. This configuration is commonly used in applications like timers, pulse generation, and time delay circuits. However, calculating the pulse width manually can be cumbersome. With the Free Online 555 Timer Monostable Circuit Calculator, you can easily determine the output pulse duration based on your chosen resistor and capacitor values.

Why Use This Calculator?

The Free Online 555 Timer Monostable Circuit Calculator is designed to simplify the process of designing monostable circuits:

- Advertisement -
  1. Quick and Accurate Results: Instantly calculates the pulse duration, reducing the chance of manual errors.
  2. User-Friendly Interface: Easy input fields make it accessible for beginners and experts alike.
  3. Supports Different Component Values: Accepts a wide range of resistor (ohms, kilo-ohms) and capacitor (farads, microfarads) values.
  4. Real-Time Feedback: Helps you experiment with different component values and see the impact on pulse duration immediately.
  5. Free and Browser-Based: No downloads or installations required—use it directly online.

How to Use the 555 Timer Monostable Circuit Calculator

Here’s a simple guide to using the calculator:

  1. Select the Resistor Value (R): Enter the resistance in ohms (Ω), kilo-ohms (kΩ), or mega-ohms (MΩ).
  2. Input the Capacitor Value (C): Specify the capacitance in farads (F), microfarads (μF), or nanofarads (nF).
  3. Click Calculate: The calculator will instantly provide the pulse duration (T), based on the entered values.

Formula

The pulse duration for a 555 Timer in monostable mode is calculated using the formula:

T = 1.1×R×C

Where:

  • T: Pulse duration (in seconds)
  • R: Resistor value (in ohms)
  • C: Capacitor value (in farads)

This formula shows that the pulse width is directly proportional to both the resistor and capacitor values. Adjusting either component allows you to control the duration of the output pulse.

Applications of the 555 Timer Monostable Circuit Calculator

The 555 Timer in monostable mode has various practical applications, including:

  1. Time Delay Circuits: Generate precise delays for triggering other components or processes.
  2. Pulse Generation: Create single pulses of a specified duration for use in signal processing.
  3. Debouncing Switches: Eliminate noise from mechanical switches by generating a clean pulse output.
  4. Frequency Divider: Use the monostable mode to divide a high-frequency signal by producing a single pulse for each trigger event.
  5. Alarm Systems: Implement time-based triggers for alarms or notification systems.
