Antenna Downtilt and Coverage Calculator

- Advertisement -

This calculator will determine the correct antenna downtilt angle given the heights of the antennas and distance between them.

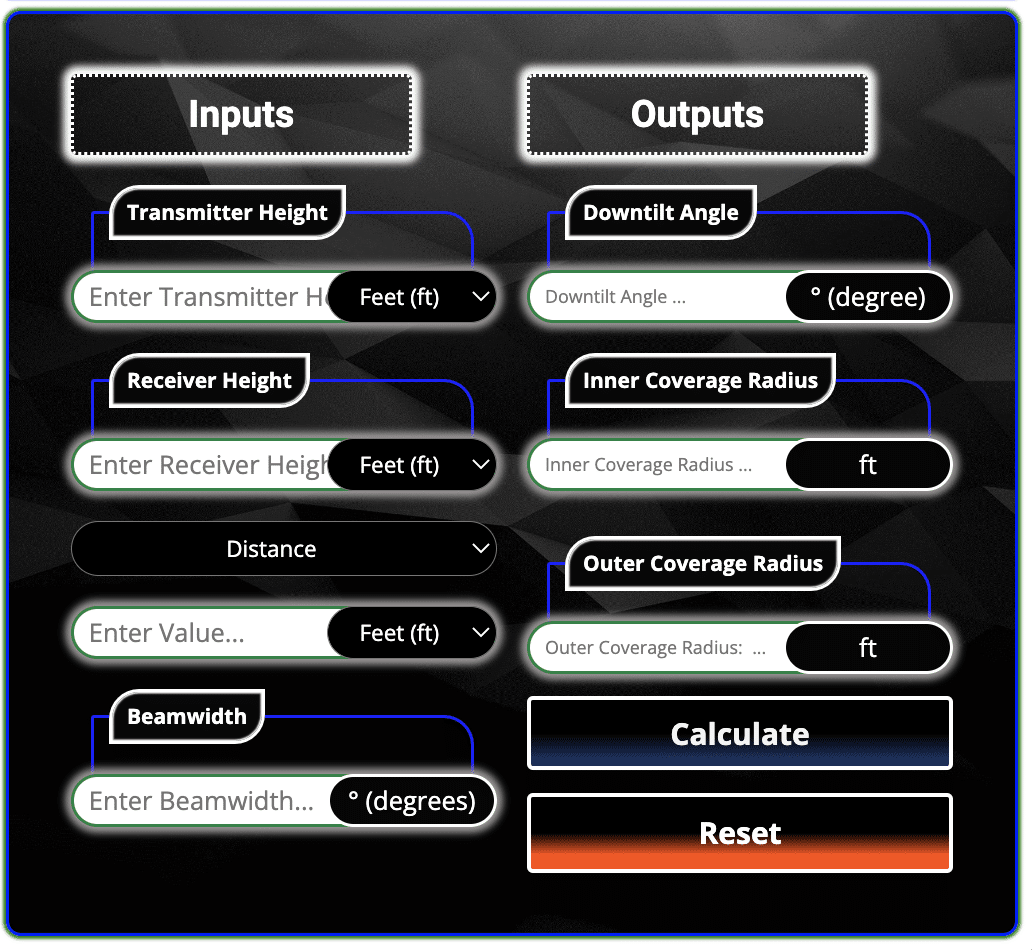

Inputs

Transmitter Height

Feet (ft) Kilometer (km) Miles (mi) Meter (m) Yards (yd) Inches (in) Centimeter (cm)

Receiver Height

Feet (ft) Kilometer (km) Miles (mi) Meter (m) Yards (yd) Inches (in) Centimeter (cm)

Distance Downtilt

Feet (ft) Kilometer (km) Miles (mi) Meter (m) Yards (yd) Inches (in) Centimeter (cm) ° (degrees)

Beamwidth

° (degrees)

Outputs

Downtilt Angle

° (degree)

Receiver Distance

° ft

Inner Coverage Radius

ft

Outer Coverage Radius

ft

Optimize your antenna placement with our free online Antenna Downtilt and Coverage Calculator. This tool is designed to help you accurately calculate the coverage area of your antenna system by considering key factors like transmitter height, receiver height, distance, downtilt, and beamwidth. Perfect for engineers, technicians, and anyone involved in RF planning and optimization.

Inputs:

• Transmitter Height (Feet (ft)): Enter the height of the transmitter antenna above ground level.
• Receiver Height (Feet (ft)): Input the height of the receiver antenna.
• Distance (Feet (ft)) or Downtilt: Specify the distance between the transmitter and receiver or input the downtilt angle of the antenna.
• Beamwidth (° (degrees)): Enter the antenna’s beamwidth in degrees.

Outputs:

• Receiver Distance: Calculate the distance at which the receiver is located based on the input parameters.
• Inner Coverage Radius: Determine the inner radius of the coverage area, helping you understand the closer range of the signal.
• Outer Coverage Radius: Calculate the outer radius of the coverage area, providing insight into the maximum reach of your antenna’s signal.

Why Use This Calculator?

Understanding the downtilt and coverage of an antenna is essential for effective RF design and deployment. By accurately predicting coverage areas, you can optimize your network’s performance, reduce interference, and ensure reliable communication.

- Advertisement -

Get Started Now:

Simply input your parameters and let the Antenna Downtilt and Coverage Calculator do the rest. Whether you’re planning a new installation or fine-tuning an existing one, this tool will provide the insights you need to make informed decisions.

Formulas

The formulas used in calculating the antenna downtilt and coverage are based on basic trigonometry and the geometry of antenna radiation patterns. Here’s a breakdown of the key formulas:

1. Receiver Distance (D)

The distance from the transmitter to the receiver can be calculated if the downtilt angle ($\theta$) and the height difference between the transmitter and receiver are known.

• HtH_tHt​: Height of the transmitter (in feet)
• HrH_rHr​: Height of the receiver (in feet)
• $\theta$: Downtilt angle (in degrees)

2. Inner Coverage Radius (R_{\text{inner}})

The inner coverage radius is the horizontal distance from the transmitter to the point where the main lobe of the antenna starts to effectively radiate. It’s typically calculated considering the minimum angle of coverage (θ−BW/2​).

• BW: Beamwidth of the antenna (in degrees)

3. Outer Coverage Radius (R_{\text{outer}})

The outer coverage radius is the horizontal distance from the transmitter to the point where the main lobe of the antenna ends, calculated using the maximum angle of coverage (θ+BW/2​).

These formulas allow the calculation of the key distances and coverage areas based on the height of the antennas, the downtilt angle, and the antenna beamwidth. They are crucial for designing and optimizing antenna placement in wireless communication networks.
