Lenz’s Law and Faraday’s Law Calculator

This calculator leverages Faraday’s Law and Lenz’s Law to determine the induced electromotive force (EMF) in a closed-loop coil when there’s a change in magnetic flux. These principles are foundational in electromagnetism and have practical applications in designing electric generators, transformers, and inductors.

Understanding Faraday’s Law and Lenz’s Law

• Faraday’s Law states that the induced EMF ($ϵ$) in a closed loop is directly proportional to the rate of change of magnetic flux (dΦ) through the loop:

  ​Where:

  • ϵ is the induced EMF (Volts).
  • N is the number of turns in the coil.
  • dΦ/dt​ is the rate of change of magnetic flux (Weber/second).

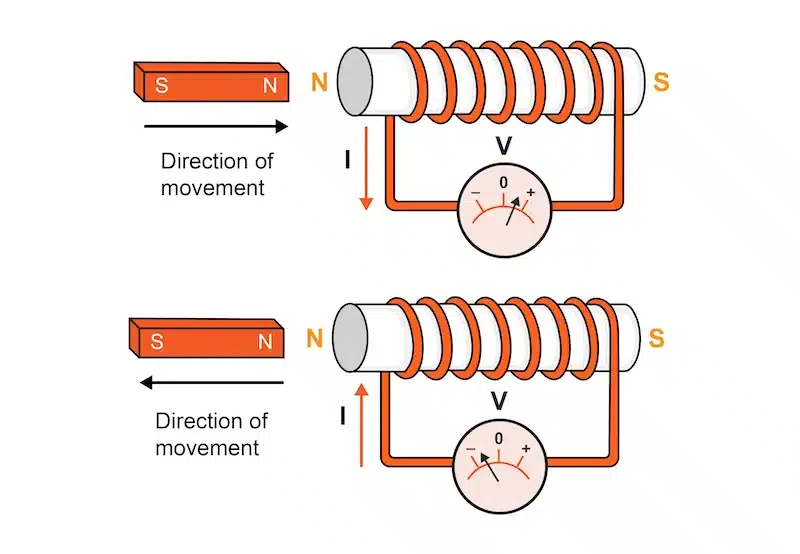

• Lenz’s Law adds that the induced EMF will always work in such a direction as to oppose the change in magnetic flux that produced it. This is why there’s a negative sign in Faraday’s Law.

Inputs Required

To calculate the induced EMF or any other variable, you can input any three of the following four variables:

1. Number of Turns (N): The total number of turns or loops in the coil.
2. Change in Magnetic Flux (dΦ): The change in magnetic flux through the coil (Weber).
3. Time (dt): The time interval over which the change in magnetic flux occurs (seconds).
4. Induced EMF (ϵ): The electromotive force generated in the coil (Volts).

Output Provided

Based on the input, the calculator will provide the missing fourth variable:

• Induced EMF (ϵ) if not provided.
• Change in Magnetic Flux ($d\Phi$) if not provided.
• Number of Turns (N) if not provided.
• Time (dt) if not provided.

Formulas Used

Depending on the variable you need to calculate, the following formulas are applied:

1. To calculate Induced EMF ($ϵ$):

   ϵ=−NdΦdt\epsilon = -N \frac{d\Phi}{dt}ϵ=−NdtdΦ​

2. To calculate Change in Magnetic Flux ($d\Phi$):

   dΦ=−ϵ⋅dtNd\Phi = -\frac{\epsilon \cdot dt}{N}dΦ=−Nϵ⋅dt​

3. To calculate Number of Turns (N):

   N=−ϵ⋅dtdΦN = -\frac{\epsilon \cdot dt}{d\Phi}N=−dΦϵ⋅dt​

4. To calculate Time ($dt$):

   dt=−dΦ⋅Nϵdt = -\frac{d\Phi \cdot N}{\epsilon}dt=−ϵdΦ⋅N​

Practical Applications

This calculator is particularly useful for:

• Electrical Engineers: Analyzing and designing systems like transformers and electric motors.
• Physics Students: Understanding and applying the concepts of electromagnetic induction.
• Experimentation: Determining the behavior of coils and inductors in varying magnetic fields.

Conclusion

The Lenz’s Law and Faraday’s Law Calculator is a practical tool for anyone working with electromagnetic systems. By accurately calculating the induced EMF or any other associated variable, it helps you better understand and design systems that rely on electromagnetic induction.

Simply input the known values, and the calculator will determine the missing quantity, making it easier to apply these fundamental laws to real-world problems.
