Power Density Calculator

- Advertisement -

This calculator is designed to calculate the power density of an antenna.

Inputs

Linear

Outputs

Watts/m^2

The Power Density Calculator is an essential tool for engineers and designers working in fields such as RF communication, wireless networks, and electromagnetic compatibility (EMC). Power density refers to the amount of power distributed over a specific area and is a key factor in evaluating the performance and safety of wireless systems, including antennas and transmitters.

Understanding power density is crucial in designing efficient communication systems, ensuring regulatory compliance, and minimizing potential health risks due to RF exposure. This free online calculator helps users quickly determine power density, making it easier to analyze and optimize RF systems.

Why Use This Calculator?

The Power Density Calculator offers several benefits:

- Advertisement -
  1. Instant Results: Quickly calculates power density, saving time and simplifying the design process.
  2. Accurate Calculations: Utilizes the standard formula, ensuring reliable and precise results.
  3. User-Friendly Interface: Easy to use, even for those with minimal experience in RF calculations.
  4. Versatile Applications: Suitable for use in various scenarios, including antenna design, wireless coverage analysis, and safety assessments.
  5. Free and Online: Accessible without any installation or fees, providing a convenient tool for both professionals and hobbyists.

How to Use the Power Density Calculator

To use the Free Online Power Density Calculator, follow these simple steps:

  1. Input Transmitter Power (Pt​): Enter the power of the transmitter in watts (W).
  2. Input Antenna Gain (G): Provide the antenna gain, typically expressed as a linear value (not in dB).
  3. Enter Distance (R): Specify the distance from the antenna where you want to calculate the power density, in meters (m).
  4. Click Calculate: Press the “Calculate” button to get the power density result, displayed in watts per square meter (W/m²).

Formula:

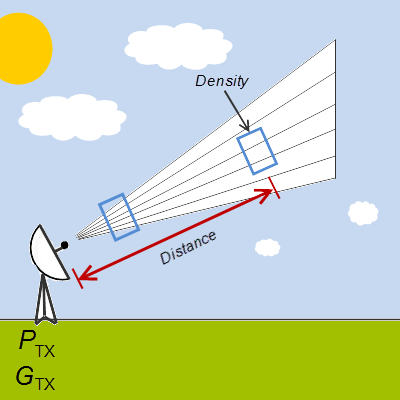

The Power Density (S) is calculated using the following formula:

Power Density Calculation Formula
Power Density Calculation Formula

Where:

  • S is the power density (in watts per square meter, W/m²),
  • Pt is the transmitter power (in watts, W),
  • G is the antenna gain (linear, unitless),
  • R is the distance from the antenna (in meters, m).

This formula shows that power density decreases with the square of the distance from the source, highlighting the inverse-square law effect.

Applications of the Power Density Calculator

The Power Density Calculator has a wide range of applications in RF and wireless engineering:

  1. Antenna Design and Analysis: Used to evaluate the radiation characteristics of antennas and ensure optimal power distribution.
  2. Wireless Coverage Planning: Helps in designing wireless networks by analyzing the power density at different distances to ensure adequate signal strength.
  3. Electromagnetic Safety: Assists in assessing RF exposure levels to comply with safety regulations and standards, such as those set by the FCC or ICNIRP.
  4. RF Testing and Measurement: Useful in laboratory settings for evaluating the performance of transmitters and antennas, ensuring they meet design specifications.
  5. EMC and Interference Analysis: Aids in analyzing the potential for electromagnetic interference in complex systems, especially in environments with multiple RF sources.
