VSWR / Return Loss Calculator

Inputs

Enter Input Value

VSWR Reflection Coefficient Return Loss

Output

VSWR

Reflection Coefficient

Return Loss

dB

Mismatch Loss

dB

Our free VSWR / Return Loss Calculator is a powerful tool designed to help you assess and optimize the performance of your RF and microwave transmission systems. By inputting key parameters, you can quickly calculate crucial outputs that reveal the efficiency and effectiveness of your system’s impedance matching.

Inputs:

1. VSWR (Voltage Standing Wave Ratio):

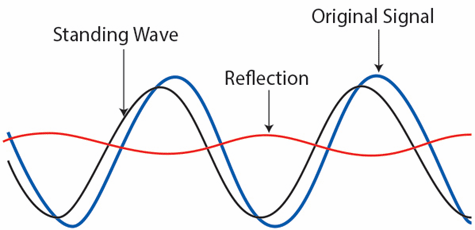

   The ratio of the maximum to the minimum voltage in a standing wave pattern along the transmission line.
2. Reflection Coefficient (Γ\Gamma):
   The ratio of the reflected wave amplitude to the incident wave amplitude, which indicates the degree of impedance mismatch.
3. Return Loss (RL):
   The measure of the amount of power that is reflected back towards the source due to impedance mismatches, expressed in decibels (dB).

Outputs:

VSWR:
Calculated using the reflection coefficient, VSWR indicates how well the load is matched to the transmission line.

- Advertisement -

Reflection Coefficient ($\Gamma$):
Derived from either the VSWR or the return loss, the reflection coefficient provides a direct measure of the mismatch.

Or from Return Loss:

Return Loss (RL):
If not directly provided, the return loss can be calculated from the reflection coefficient to express how much signal is reflected back.

Mismatch Loss (ML):
Mismatch Loss quantifies the power lost due to the mismatch between the load and the transmission line.

How to Use the VSWR / Return Loss Calculator:

1. Enter any of the Inputs (VSWR, Reflection Coefficient, or Return Loss): Provide the known values you have, and the calculator will derive the remaining outputs.
2. Calculate Outputs: The tool will automatically compute the remaining parameters, including the Mismatch Loss, to give you a comprehensive understanding of your system’s performance.

Why These Outputs Matter:

• VSWR: Helps determine the efficiency of power transmission by showing how well the load matches the transmission line.
• Reflection Coefficient: Indicates the level of impedance mismatch, essential for diagnosing potential issues in the system.
• Return Loss: Higher return loss means better impedance matching, which minimizes power reflection.
• Mismatch Loss: Shows the amount of power lost due to mismatches, helping to quantify the impact on overall system efficiency.
